Hydrogen production and hydrogen energy storage systems

BAITU|Hydrogen production and hydrogen energy storage systems

Hydrogen production and hydrogen energy storage systems

Energy storage is a crucial part of energy transformation and power transformation. Stable Hydrogen Energy has always been deeply involved in research and development, using revolutionary hydrogen energy technology innovation to develop safe, efficient, and economical hydrogen storage systems for electrolysis of water. It is widely compatible with power generation, power grid, and electricity consumption fields. Reduce human dependence on fossil fuels and achieve the common vision of global sustainable development.

BAITU|Hydrogen production and hydrogen energy storage systems

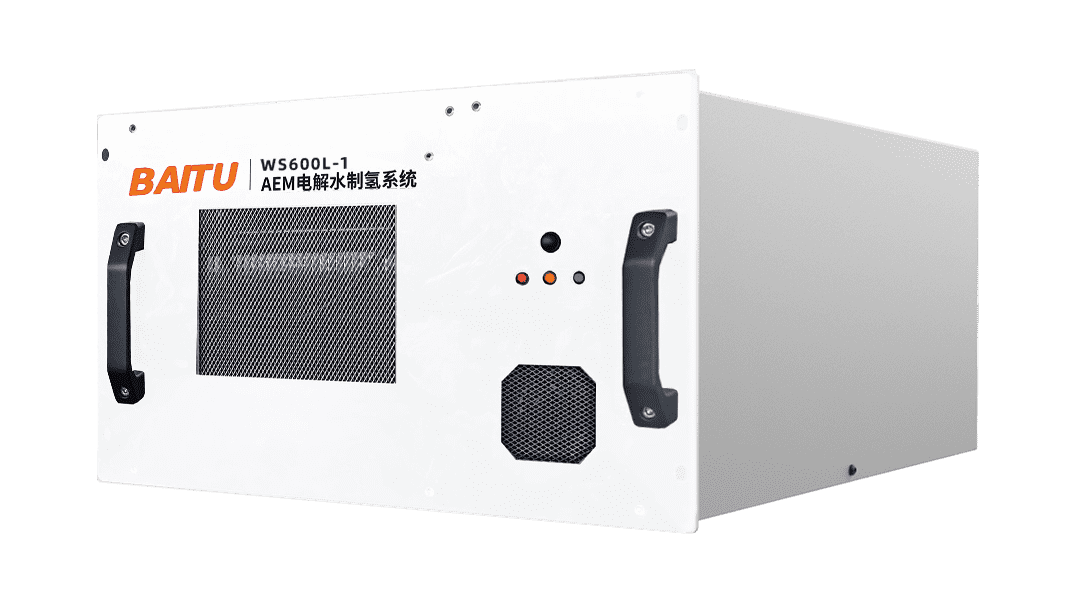

The latest generation of electrolytic cells

Lower costs, longer lifespan, higher efficiency
BAITU|Hydrogen production and hydrogen energy storage systems

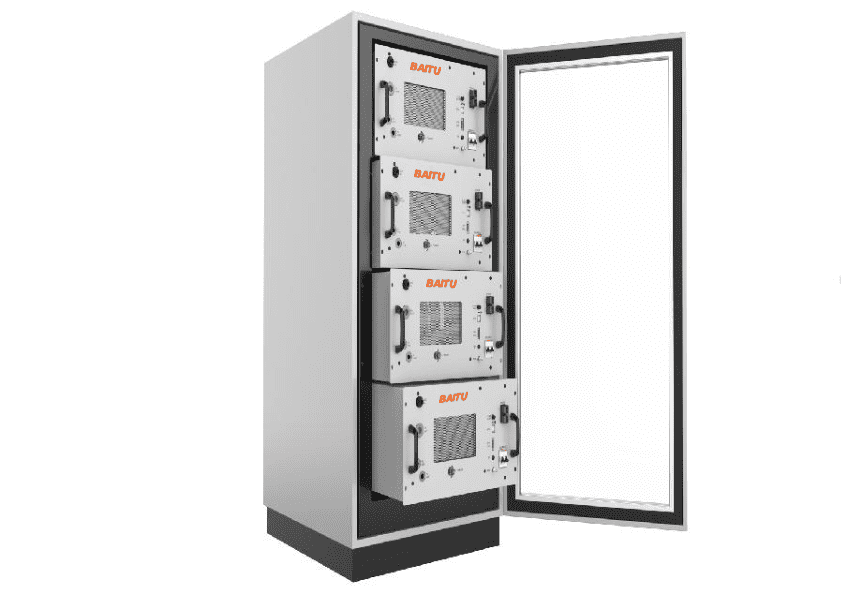

Assembled deep cabinet

Easy to install, low maintenance cost Modular and flexible stacking to form large electrolytic cells
BAITU|Hydrogen production and hydrogen energy storage systems

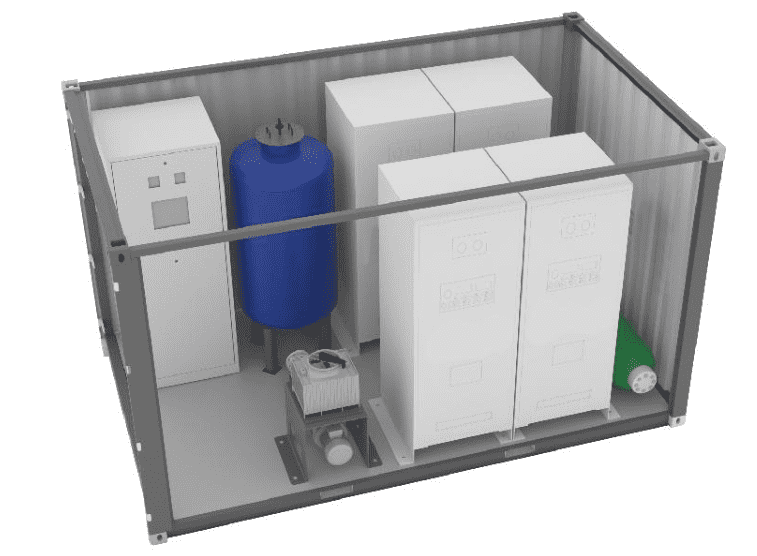

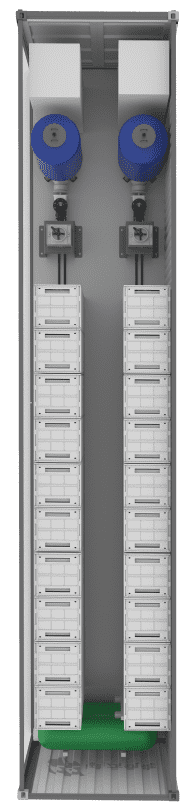

Stable stone hydrogen electrolysis cell container

Making green hydrogen acquisition simple and efficient, through modular assembly, it is easy to achieve electrolysis cell specifications of 1-200Nm3

Product specifications and characteristics

BAITU|Hydrogen production and hydrogen energy storage systems
  • Low cost hydrogen production
  • Low water purity requirements
  • high efficiency
productivity

210 Nm’/h

Net volumetric flow

Hydrogen output purity

Molar fraction 99.8%

Impurity: 0x1500 ppm, 0z<5ppm

Atmosphere output pressure

Up to 35 bar



Gas output purity (with optional dryer)

Ting’er score 99.999%

Impurities: H0<5 ppm, 0z<5 ppm

flexibility

Nominal production rate of 3%~105%



Oxygen output pressure

atmosphere

Nominal power consumption

Generate per Nm8H

4.8 kWh/Nms

Including all utility modules within the boundary area

Nominal power consumption

1,008 kW


Voltage

3x400V (AC) three-phase power grid


frequency

50/60 Hz



Although the nominal water flow

0.19 Nm3 purified water

Water inlet pressure

0.5-4 bar

Inlet water temperature

6°C-30°C

System lifespan

20 years

Electrolytic cell lifespan

>35000 working hours

Hot start time

0-100% within a few seconds

Cold start time

0-100% (depending on ambient temperature for approximately 30 minutes)

size

W:2.438mxL:12.192m xH:2.591 m

Weight

About 30 tons

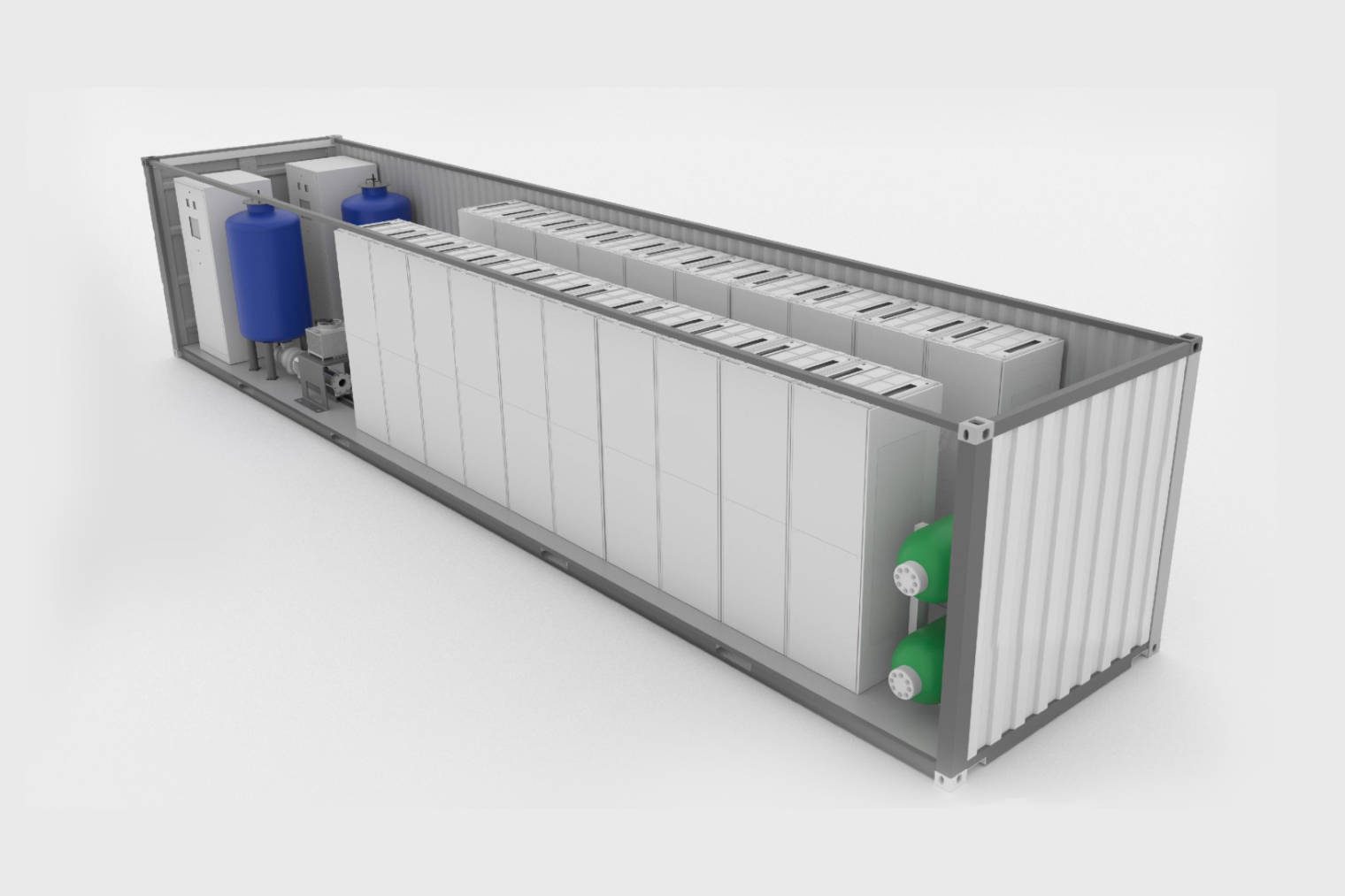

Transportation dimensions

40-foot container

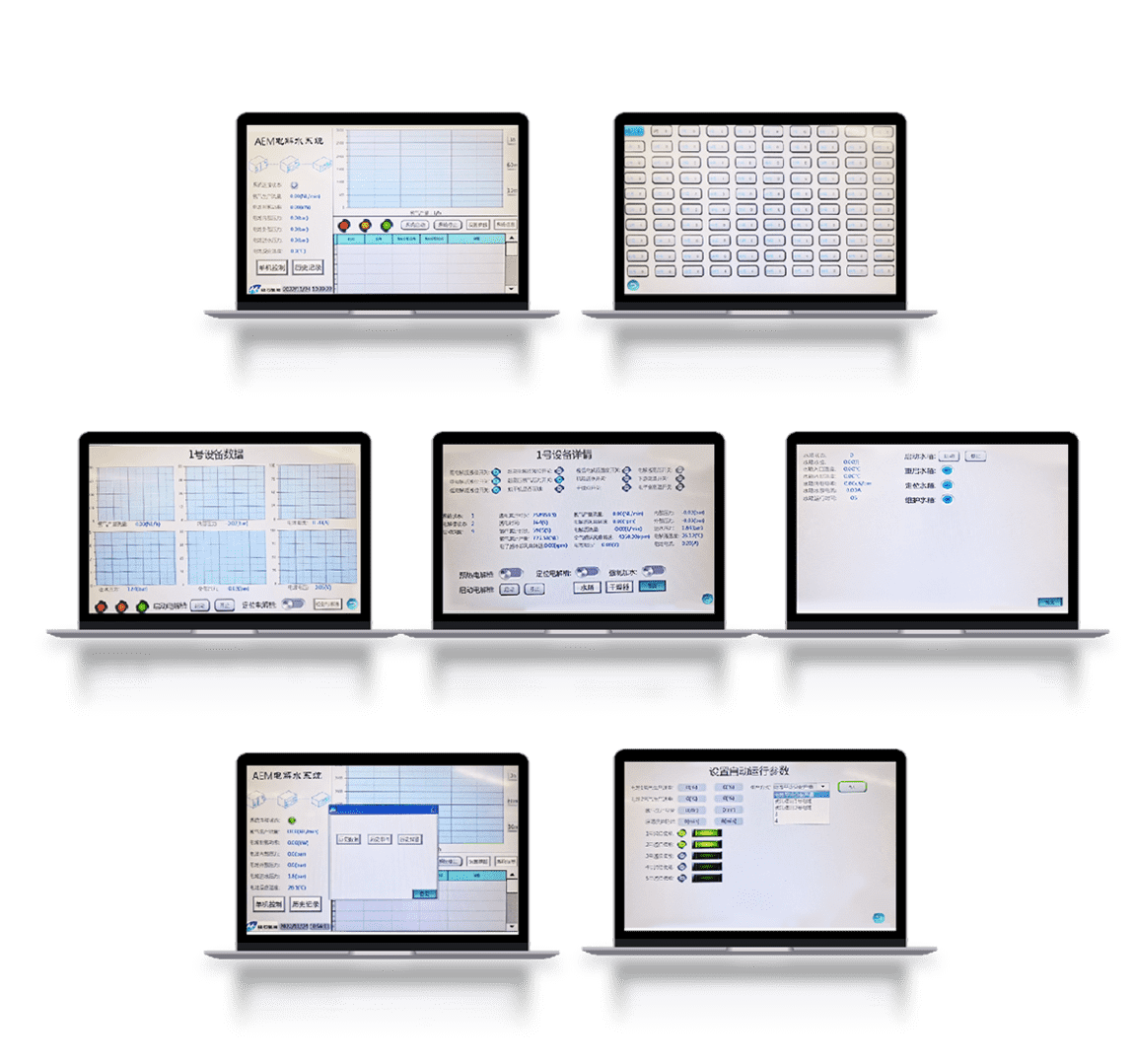

EMS toolkit: simple software integration

BAITU|Hydrogen production and hydrogen energy storage systems

Connect any device to a unified energy network. Plan and control the energy production, storage, and transmission of any energy system.

  • Connected through Universal Communication Module (UCM)
  • Unified data and control equipment using the Wenstone telemetry platform
  • Real time or on-demand data acquisition through Wenstone Cloud
  • Control hydrogen anytime, anywhere using our mobile application
  • Advanced integration with developer tools such as Web IDE and Wenstone Blueprints

The supported devices include:

Boilers, battery charging controllers, battery and solar inverters, hydrogen generators, fuel cells, valves, compressors and pumps, diesel generators, irradiance sensors, and other digital and analog sensors.

The supported UCM protocols include:

Modbus RTU、 Virtual UCM and Sunspec, Ethernet and SNMP, MQTT, RS-232 and RS-485, CAN bus, HTTP/HTTPS and REST, OPC UA.

Custom interfaces can be used:

Low code development tools, providing third-party connectors such as SDK and MQTT connectors.
