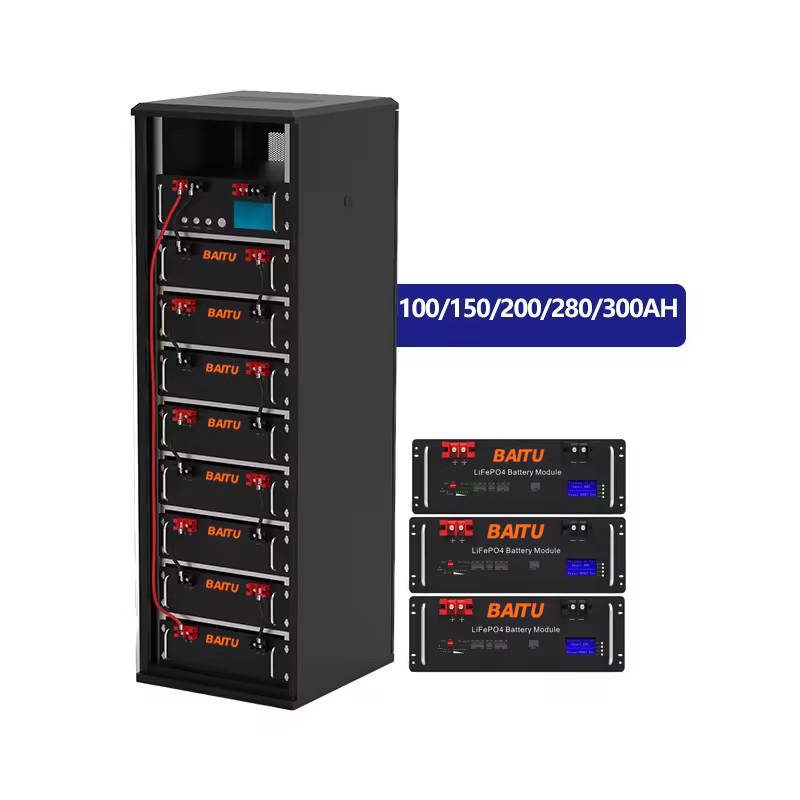

10kW LiFePO4 Battery Pack for Solar Energy Storage 200Ah LiFePO4 Battery Pack for Home Energy Storage

Industry-specific attributes

Anode Material

LFP

Application

Toys, Power Tools, Home Appliances, Consumer Electronics, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies

Other attributes

Brand Name

Baitu

Model Number

YY410100HV

Place of Origin

China

Weight

520kg

The charging ratio

0.5C

The discharge rate

1C

Battery type

Lifepo4/lithium Battery

Voltage

409.6 V/384V/512V/614.4V

Nominal Capacity

100Ah/Customized

OEM/ODM

Accepatable

Features

Environmental Safety Long Life

warranty

5 years

Battery cell

LiFePo4

Cycle life

6000 Times

Name

High Voltage Energy Storage Battery

Warranty

5years

Packaging and delivery

Packaging Details

Carton+ Pallet

Selling Units:

Single item

Single package size:

62X69X200 cm

Single gross weight:

193.000 kg

Supply Ability

Supply Ability
Piece/Pieces per Day 280
More>>
Clear
Add to quote
Description

Video Description

Product Details

Specification

Item
Product Parameter
Model
YY384100HV
YY410100HV
YY512100HV
YY614100HV
Rate voltage(Vdc)
384
409.6
512
614.4
Rate capacity(AH)
100
100
100
100
Energy storage(KWH)
38.4
40.96
51.2
61.44
Cycle life
≥4000 cycles to 85% DOD
Months self discharge
≤2%
Efficiency of charge
100% at 0.2C
Efficiency of discharge
96-99% at 1C
Charge voltage(Vdc)
432
460.8
576
691.2
Charge mode(Per cell)
CC/CV
Recommend Charge current(A)
30
30
30
30
Max. Charge current(A)
100
100
100
100
Charge cut-off voltage(VDC)
432
460.8
576
691.2
Contiunous current(A)
100
100
100
100
Discharge cut-off voltage(VDC)
336
358.4
448
548.8
Charge temperature
0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity
Discharge temperature
-20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity
Storage temperature
0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity
IP class
IP63
Material system
LiFePO4
Case material
Metal

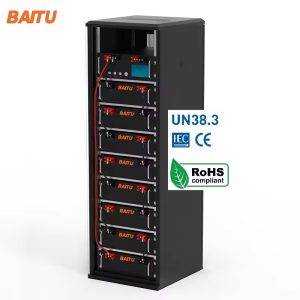

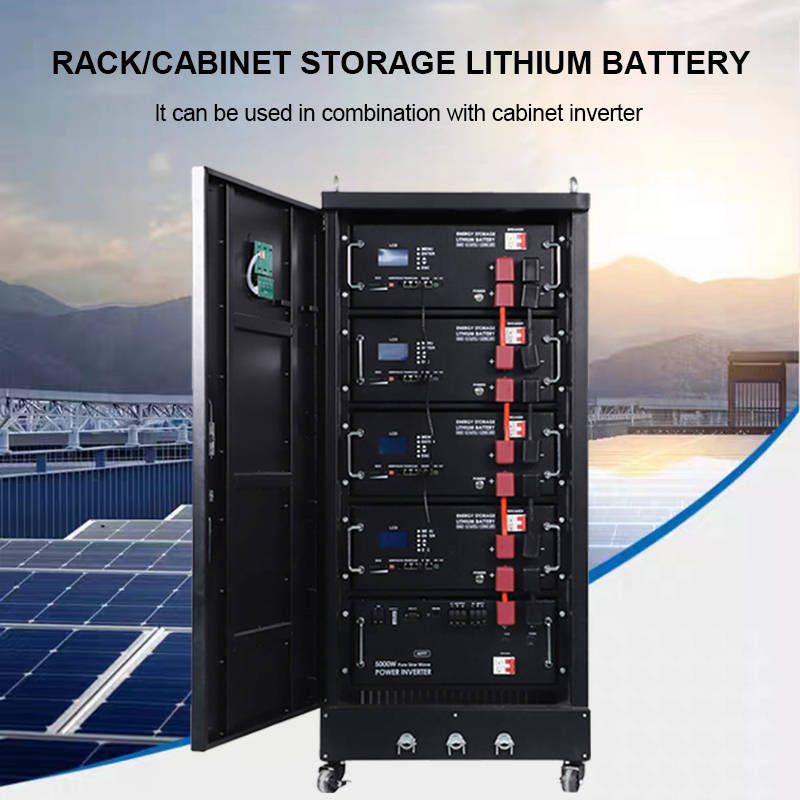

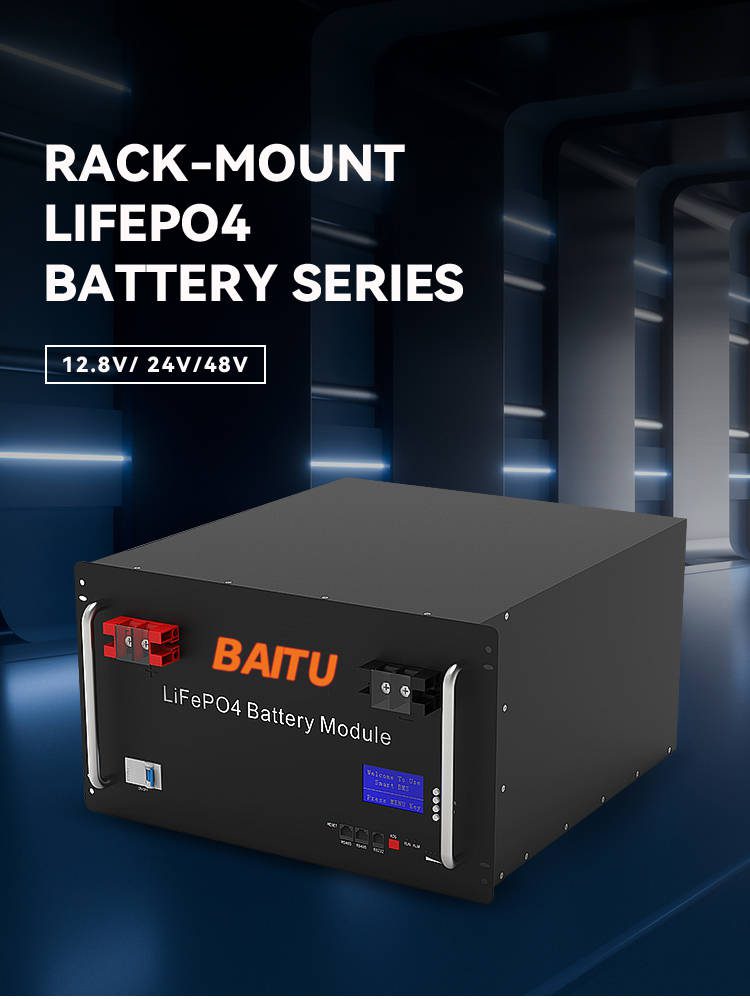

Case type

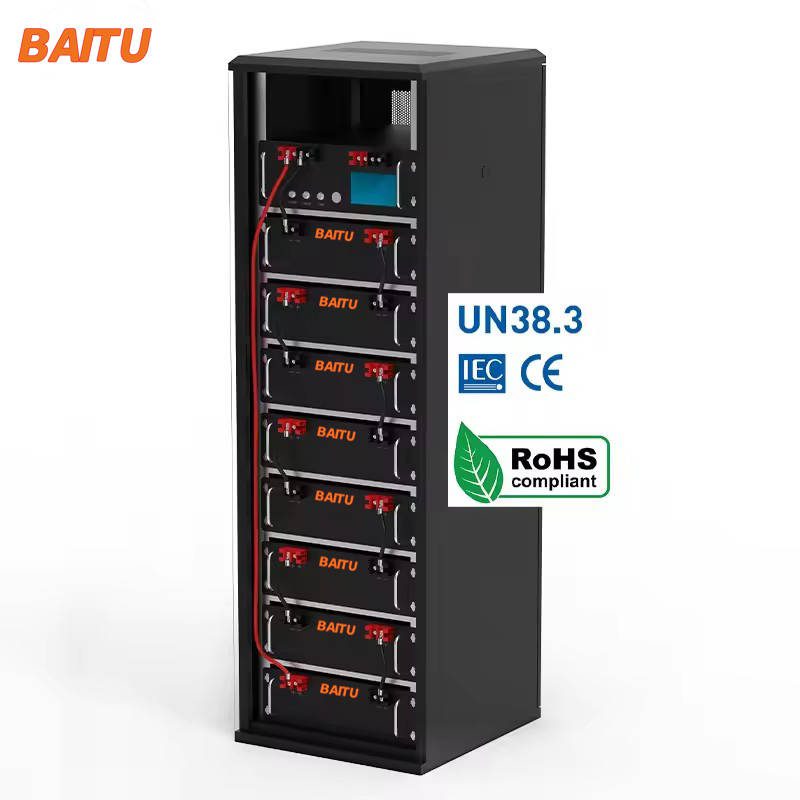

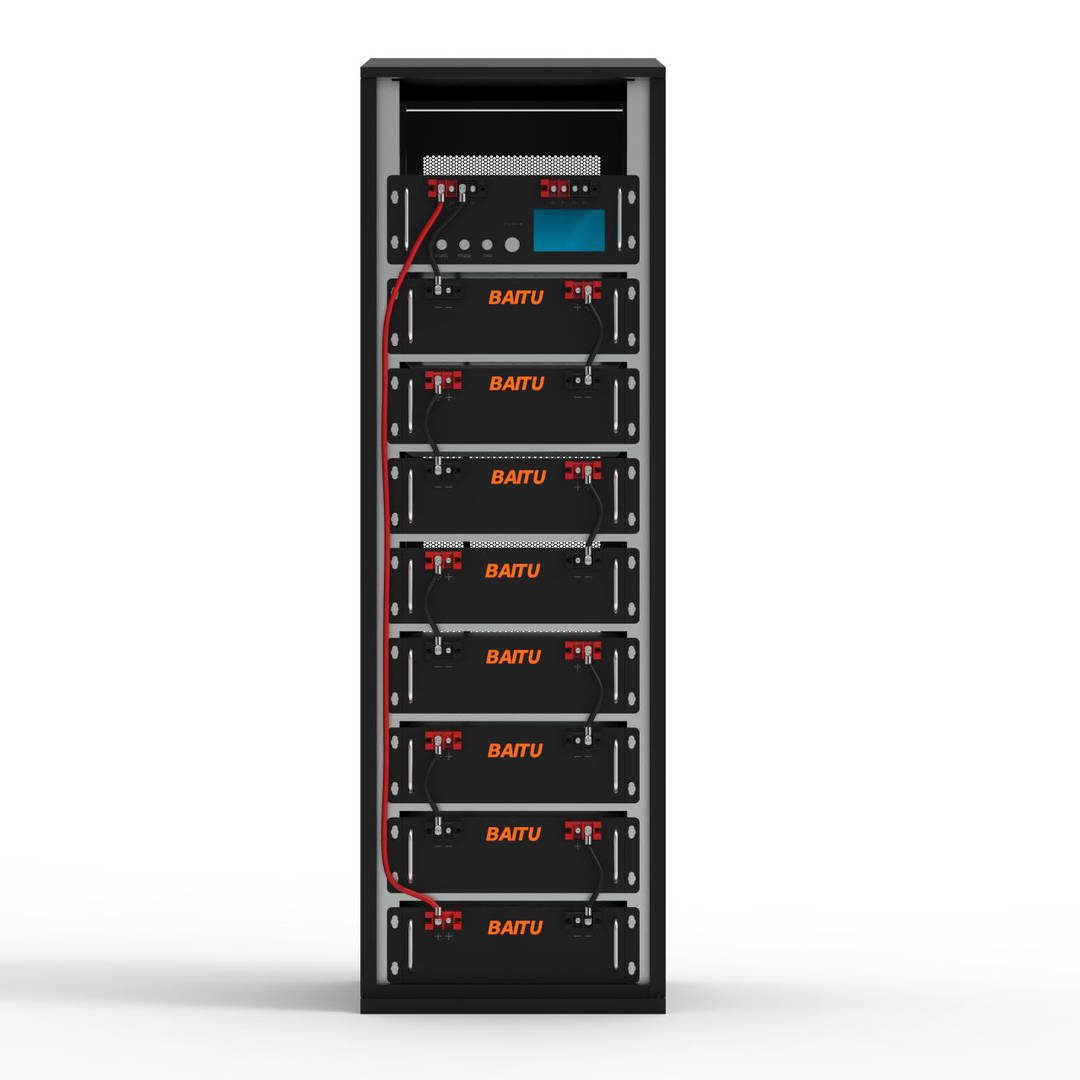

Rack Mount

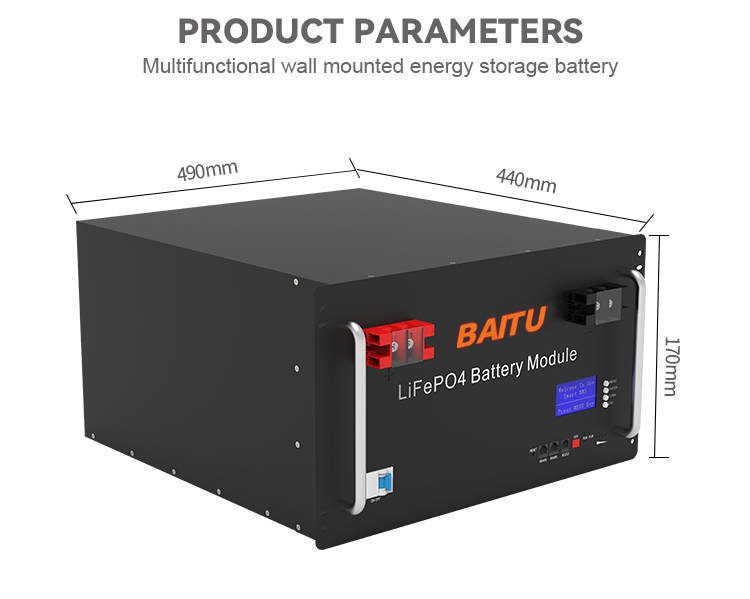

Pack Dimensions L*W*H(mm)
600*650*1880
600*650*1880
600*650*2100
2*(600*650*1880)
Package Dimensions L*W*H(mm)
620*670*2000
620*670*2000
620*670*2120
2*(620*670*2000)
Net Weight(kg)
150
145
255
305
Gross Weight(kg)
153
193
305
385
Terminal
M8
Protocol(Optional)
CANBus/RS485/RS232
SOC (Optional)
LED/LCD
The quality assurance period
60 months

Company Profile

Additional Information
Nominal Capacity

Nominal Capacity(1): 100Ah
Battery Type

pack
Nominal Voltage

409.6V, 409.6V, 512, 384V, 614.4V
