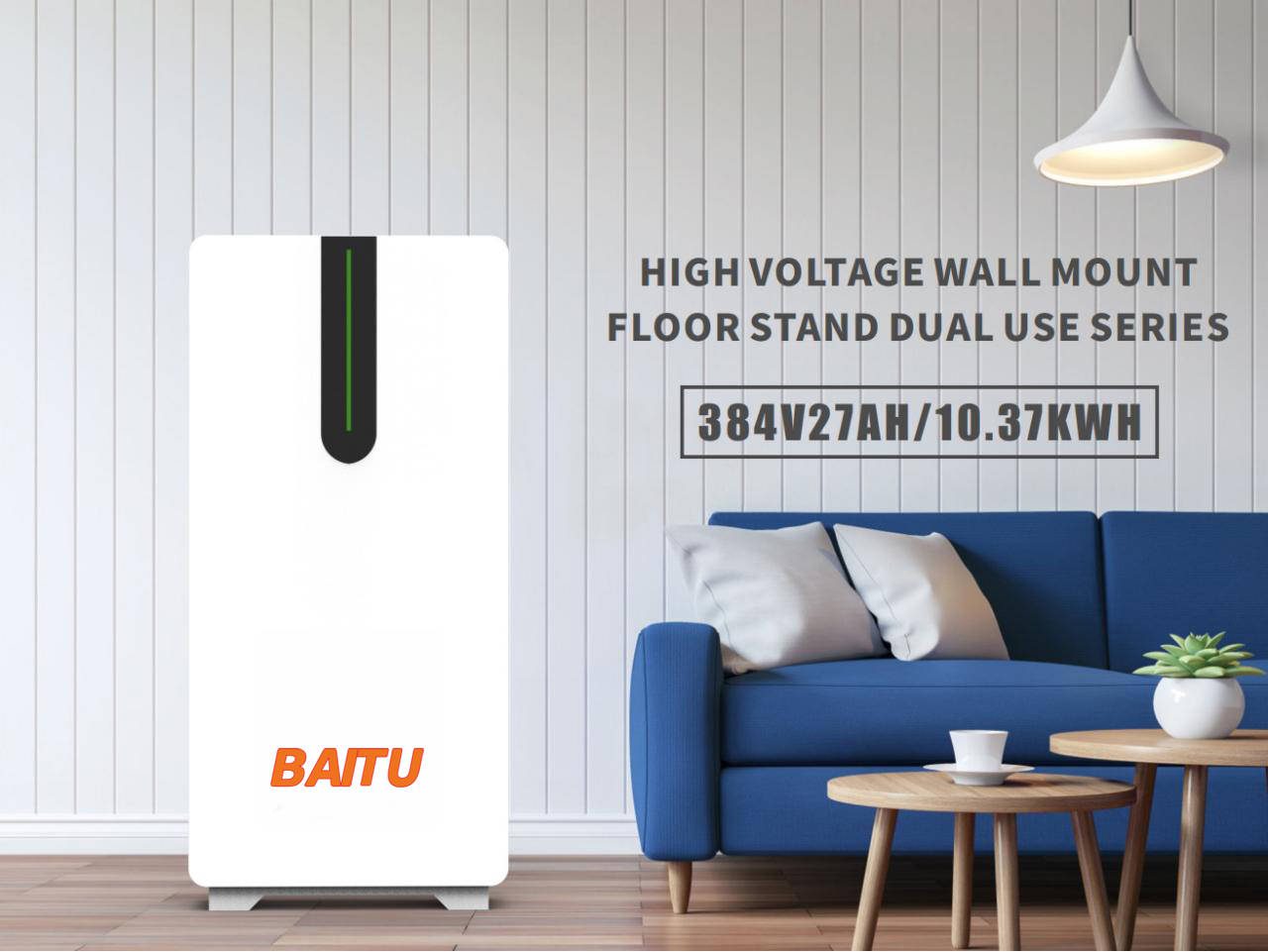

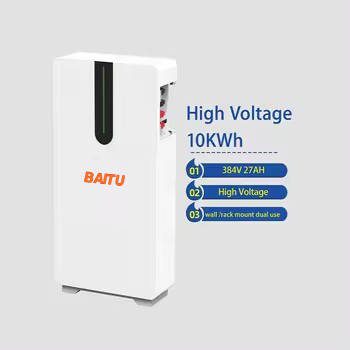

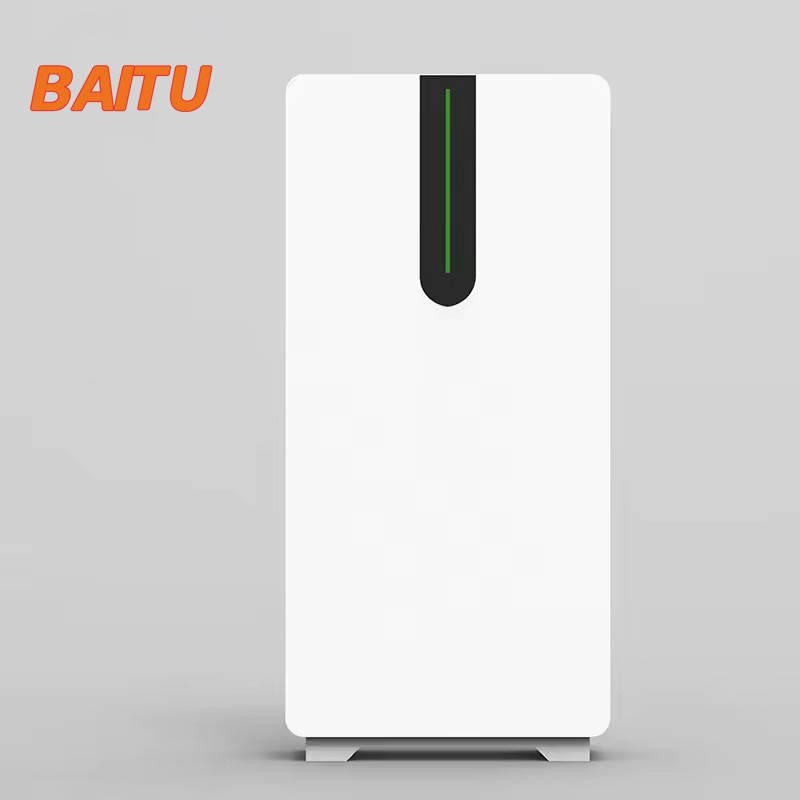

230V 220V 300ah 400ah 10KWH 15kwh 20kwh 384v lfp bms solar energy storage lithium ion battery 384V 27ah lifepo4

Other attributes

Battery Type

Lithium Ion

Output Power Range

10~20 kWh

System Type

Wall-mounted, all-in-one

Model Number

YY-384V27AH-HW

Brand Name

Baitu

Place of Origin

China

Dimension (L*W*H)

1100*520*230mm

Weight

128KG

Type

All-in-one

Communication Port

CAN, RS232, RS485

Protection Class

IP54

Grid connection

Hybrid grid

Application

hospital,bank,office

Capacity

27ah

Voltage

384V

Product name

YY-384V27AH-HW

Size(mm)

570*420*740

Material

Lithium iron phosphate

Color

optional

Cycle life

6000 Cycles

Brand

Baitu

Warranty

5 Years

Packaging and delivery

Packaging Details

Carton+ Pallet

Selling Units:

Single item

Single package size:

54X31X125 cm

Single gross weight:

156.000 kg

Supply Ability

Supply Ability
200 Piece/Pieces per Day 280
More>>
Clear
Add to quote
Description

Video Description

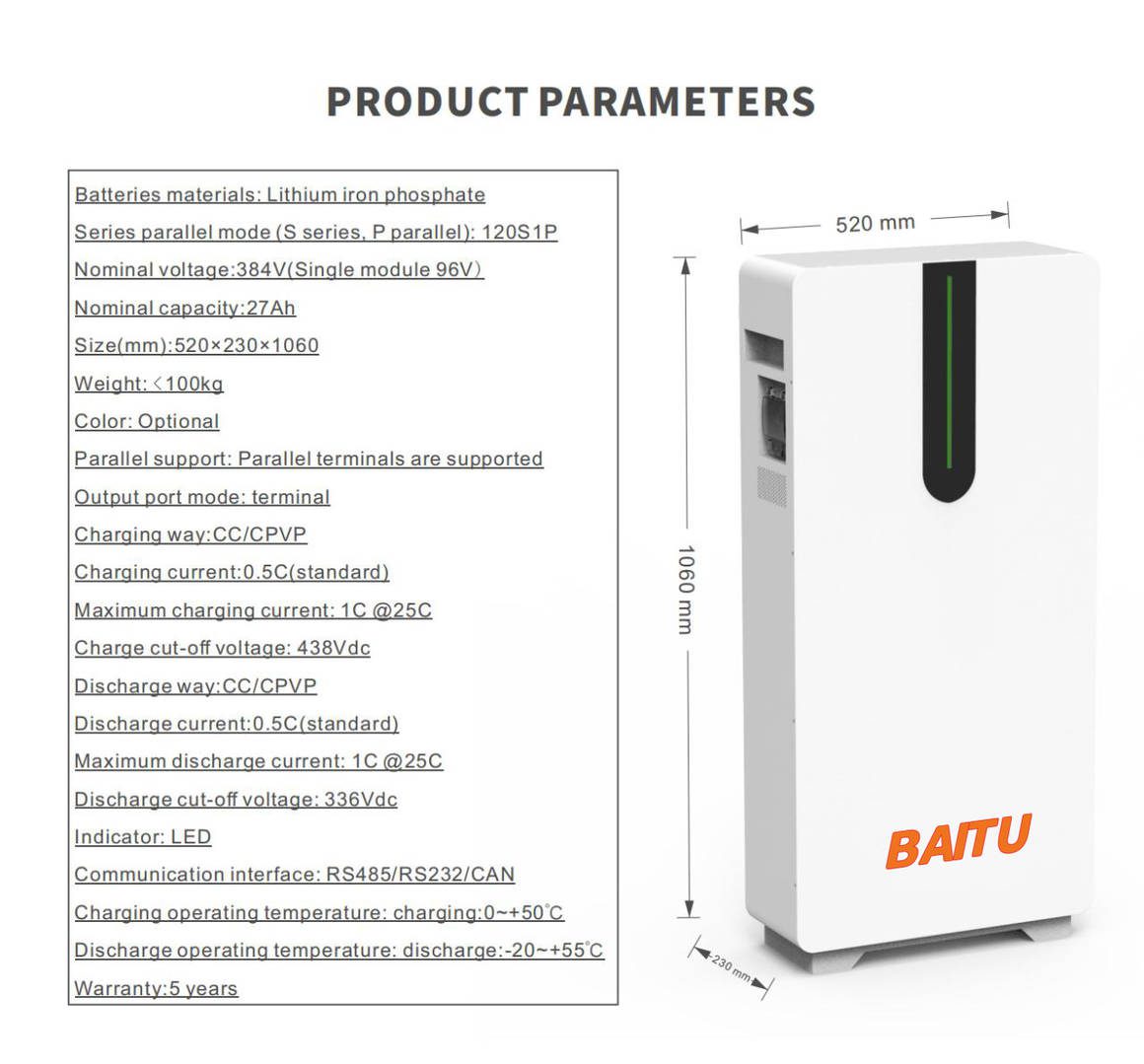

Item
Product Parameter
Model
YY-384V27AH-HW
Batteries materials
Lithium iron phosphate
Series parallel mode (S series, P parallel)
120S1P
Nominal voltage
384V(Single module 96V)
Nominal capacity
27Ah
Size(mm)
520×230×1060
Weight
<100kg
Color
Optional
Parallel support
Parallel terminals are supported
Output port mode
terminal
Charging way
CC/CPVP
Charging current
0.5C(standard)
Maximum charging current
1C @25C
Charge cut-off voltage
438Vdc
Discharge way
CC/CPVP
Discharge current
0.5C(standard)
Maximum discharge current
1C @25C
Discharge cut-off voltage
336Vdc
Indicator
LED
Communication interface
RS485/RS232/CAN
Charging operating temperature
charging:0~+50℃
Discharge operating temperature
discharge:-20~+55℃
Warranty
60 months

Product Details

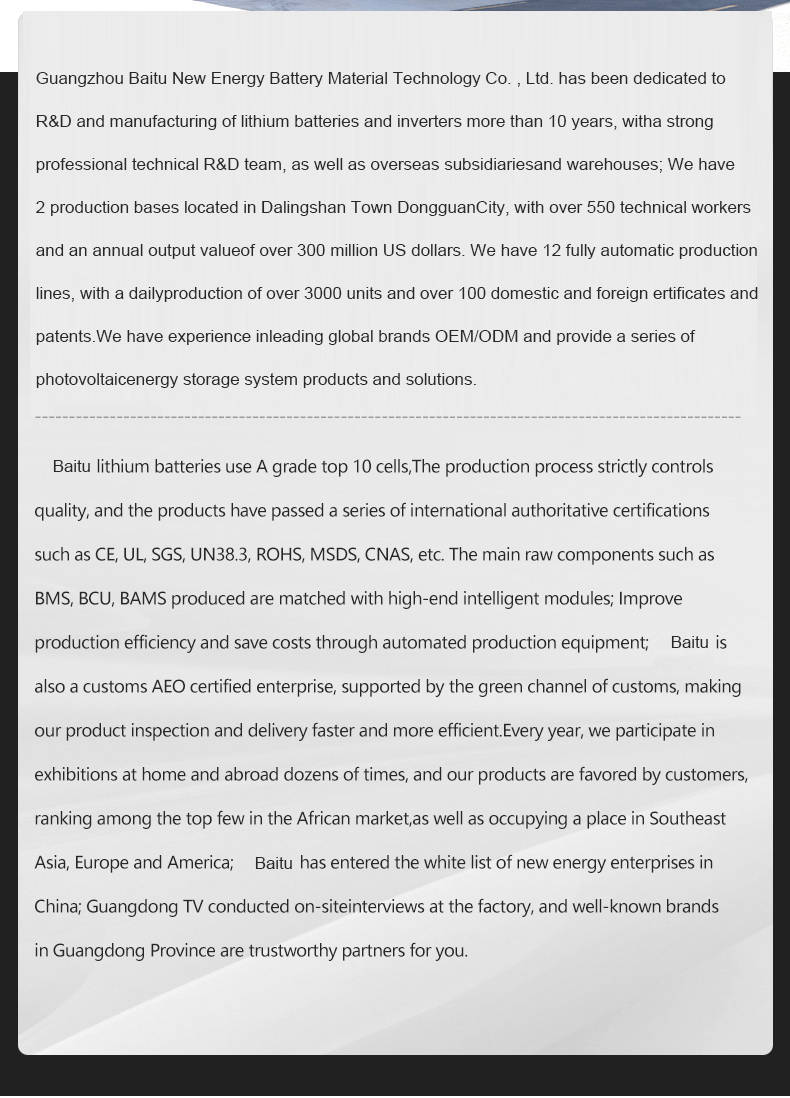

Company Profile

Certifications

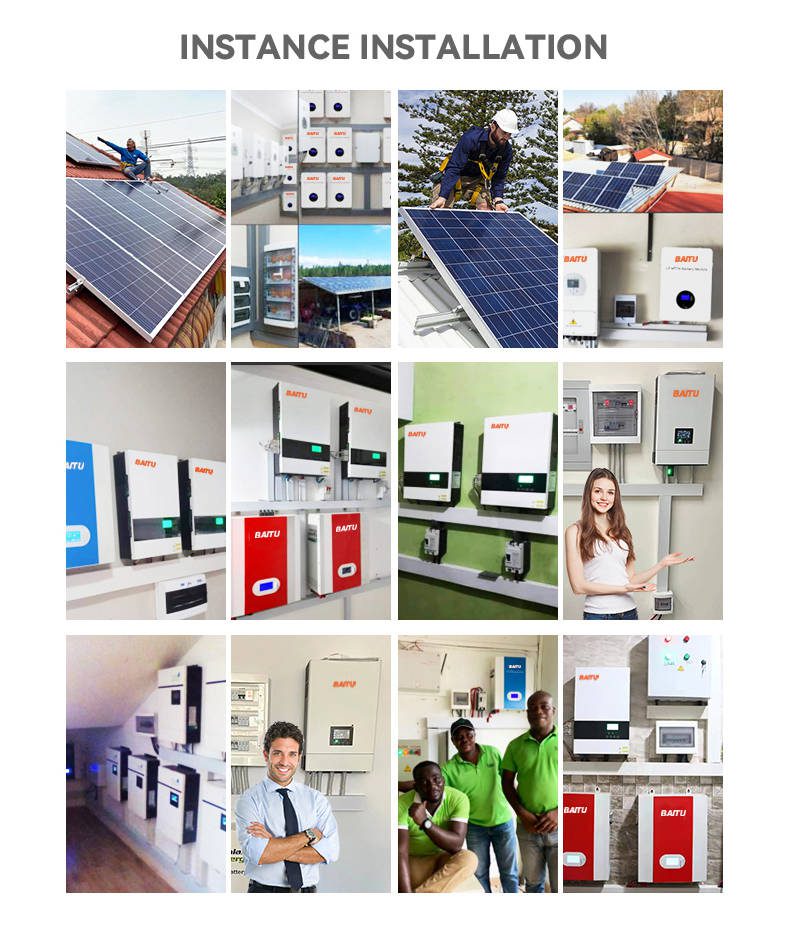

Our Project

Additional Information
Color

White
Capacity

27ah
System Voltage

384V
