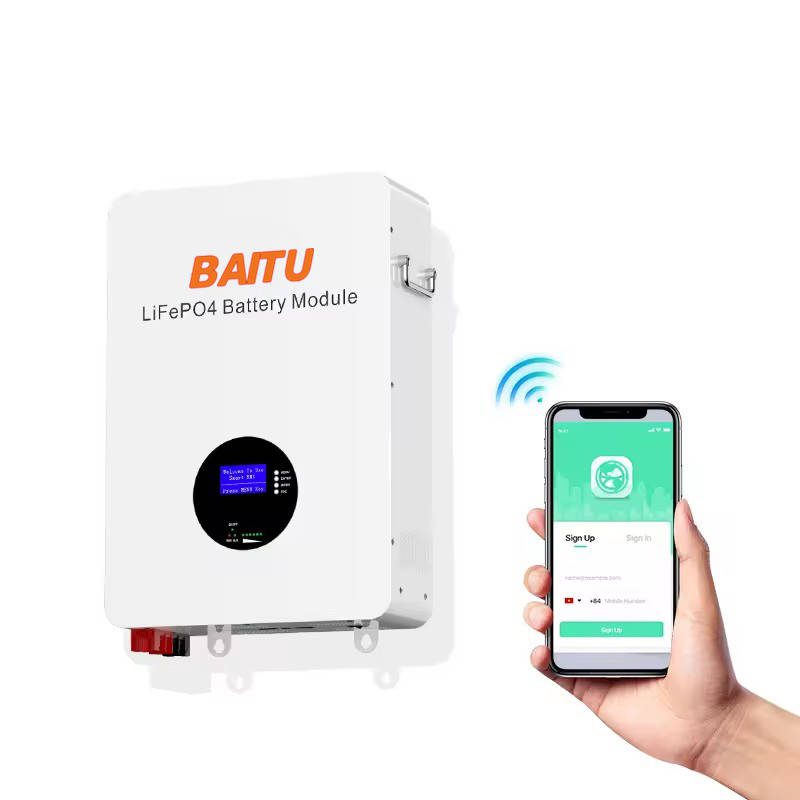

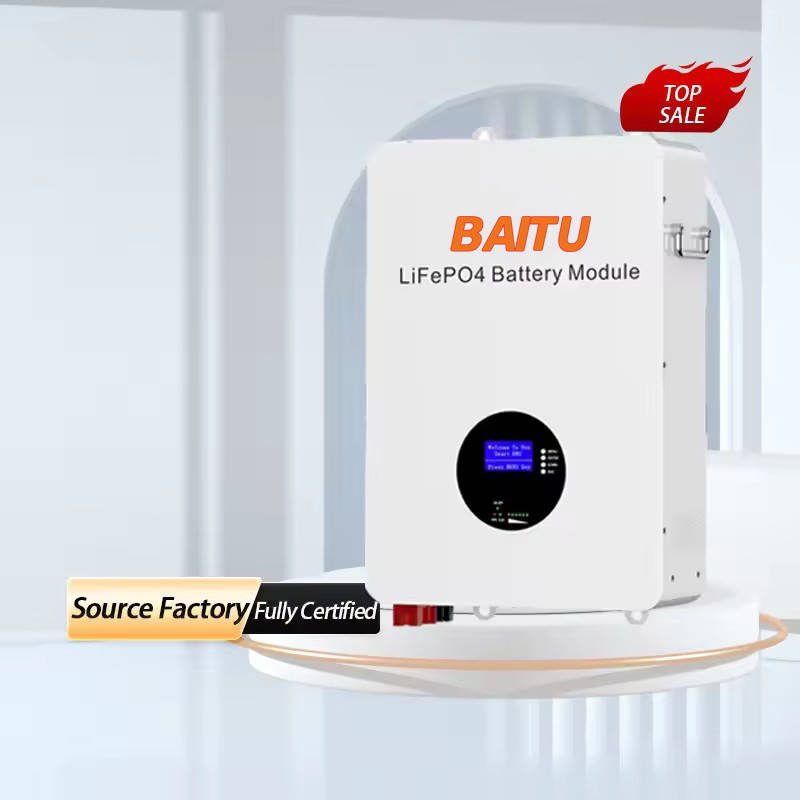

51.2v 5kwh 100ah power wall mounted home energy storage system lfp solar lithium iron phosphate 48v lifepo4 battery

Other attributes

Battery Type

LiFePO4

Output Power Range

5~10 kWh

System Type

Wall-mounted

Model Number

51.2v 100ah

Brand Name

daai

Place of Origin

Guangdong, China

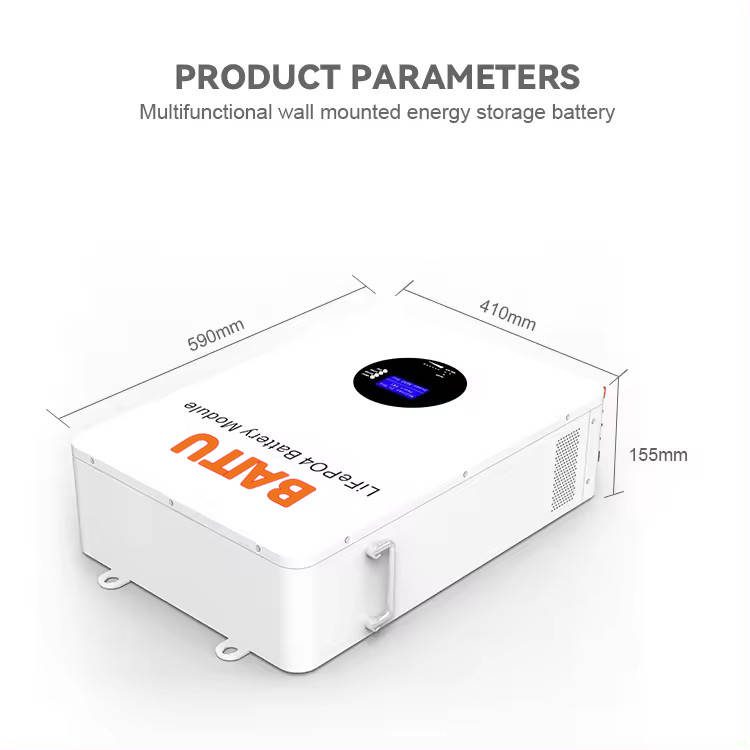

Dimension (L*W*H)

590*410*155mm

Weight

48kg

Type

All-in-one

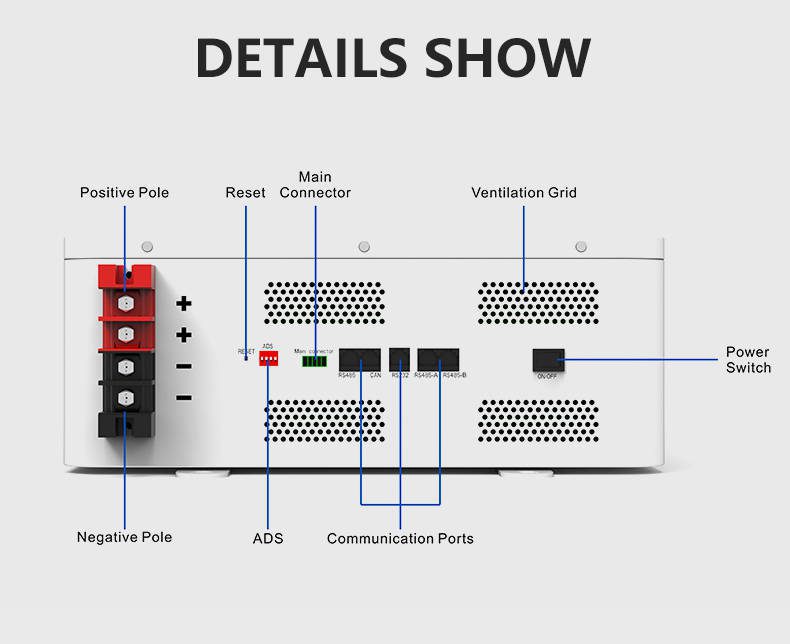

Communication Port

CAN, RS232, RS485

Protection Class

IP65

Brand Name

Baitu

Model Number

YY48100HW-1

Type

LiFePO4 Battery

BMS

Yes

Chargeable

Yes

OEM/ODM

Yes

Warranty

5 years,over 10 years design lifespan

Application

Home Appliances, Consumer Electronics, BOATS…

Certification

CE

Packaging and delivery

Packaging Details

Carton+ Pallet

Selling Units:

Single item

Single package size:

63X45X20 cm

Single gross weight:

50.000 kg

More>>
Clear
Add to quote

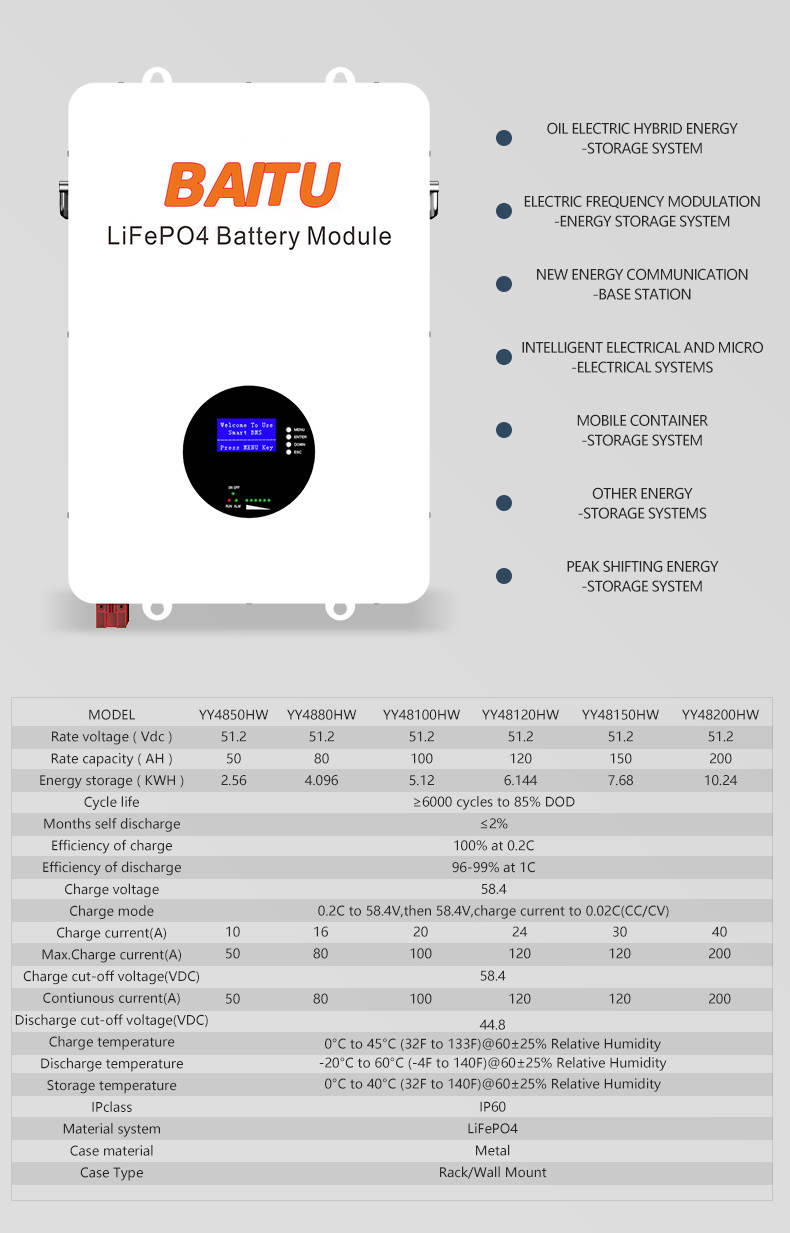

Description
Item
Product Parameter
Model
YY4850HW
YY4880HW
YY48100HW
YY48120HW
YY48150HW
YY48200HW
Rate voltage(Vdc)
51.2
51.2
51.2
51.2
51.2
51.2
Rate capacity(AH)
50
80
100
120
150
200
Energy storage(KWH)
2.56
4.096
5.12
6.144
7.68
10.24
Cycle life
≥6000 cycles to 85% DOD
Months self discharge
≤2%
Efficiency of charge
100% at 0.2C
Efficiency of discharge
96-99% at 1C
Charge voltage
58.4
Charge mode
0.2C to 58.4V, then 58.4V,charge current to 0.02C (CC/CV)
Charge current(A)
10
16
20
24
30
40
Max. Charge current(A)
50
80
100
120
120
200
Charge cut-off voltage(VDC)
58.4
Contiunous current(A)
50
80
100
120
150
200
Discharge cut-off voltage(VDC)
44.8
Charge temperature
0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity
Discharge temperature
-20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity
Storage temperature
0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity
IPclass
IP43
Material system
LiFePO4
Case materia
Metal
Case Type
Rack/Wall Mount
Pack Dimensions L*W*H(mm)
455*390*150
570*410*155
570*410*155
600*450*190
860*485*190
860*485*190
Package Dimension L*W*H(mm)
610*485*250
610*485*250
610*485*250
675*525*265
950*575*250
950*575*250
Net Weight(kg)
28.3
40.4
45
48.3
67.4
83.8
Gross Weight(kg)
31.2
42.7
48.2
52
70.1
86.4
Terminal
M8
Protocol(Optional)
CANBus/RS485/RS232
SOC (Optional)
LED/LCD
The quality assurance period
60 months



ITEM
VALUE
Product name
YY48100HW-1
Brand name
Baitu
Materials
Lithium iron phosphate
Size(mm)
590*410*155
Weight
48kg
Nominal voltage
51.2v
Nominal capacity
100Ah
Color
optional

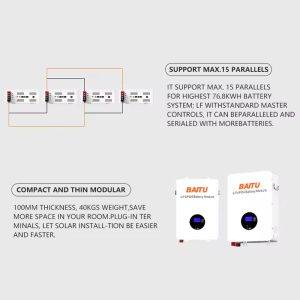

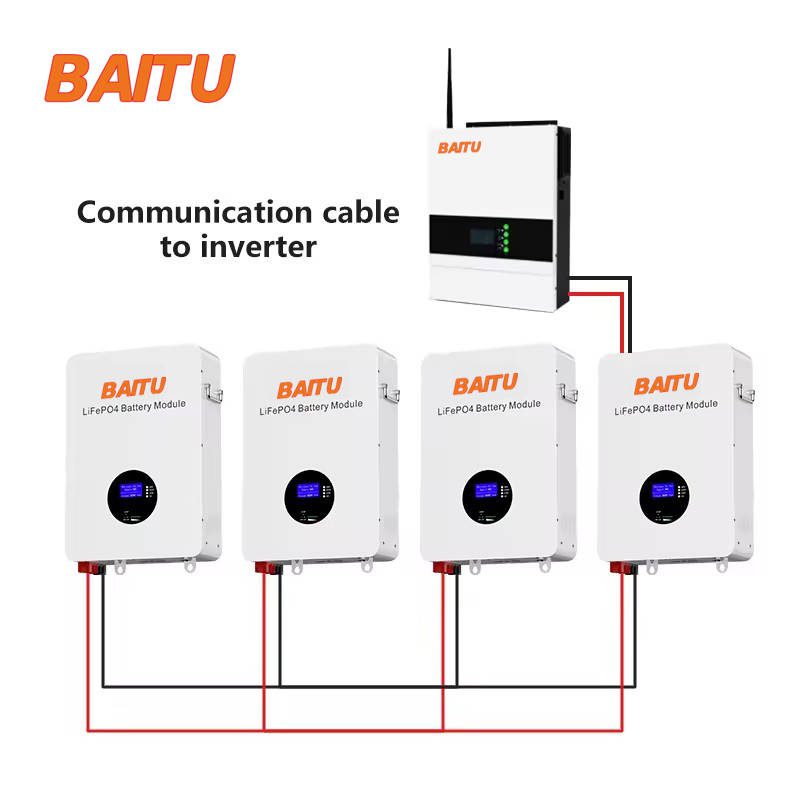

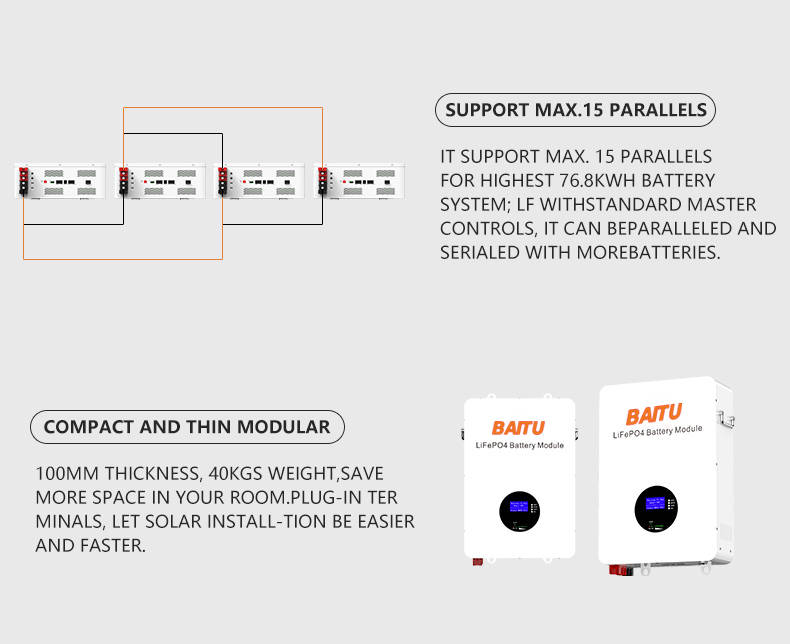

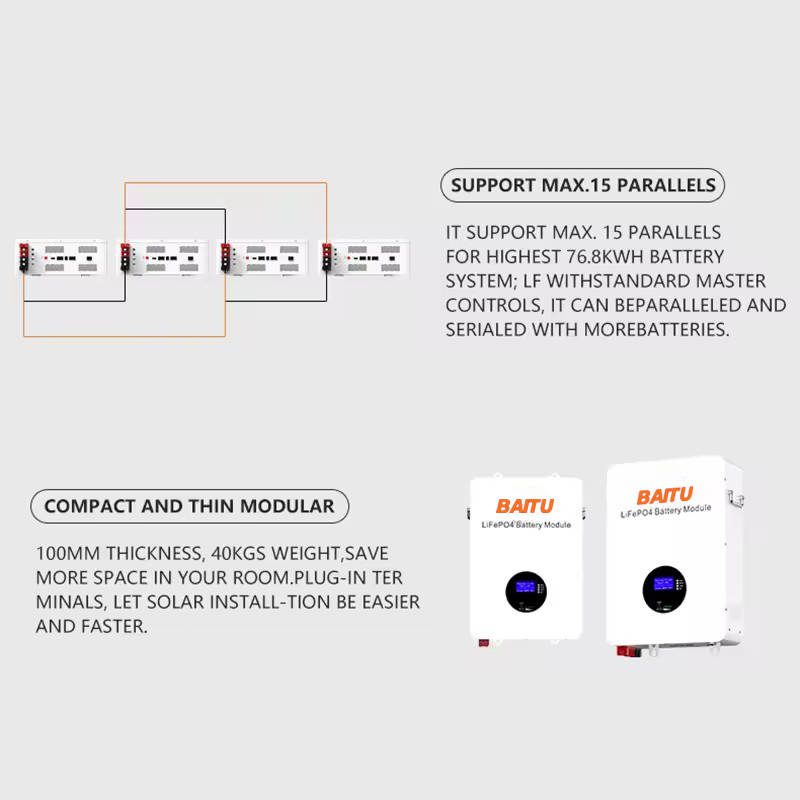

Parallel support
Parallel terminals are supported
Output port mode
terminal
Charging way
CC/CP/VP
Charging current
0.5C(standard）
Maximum charging current
Max1C @25℃
Discharge current
1C
Maximum discharge current
Max1.2C @25℃
Charging operating temperature
charging:0~+50℃
Discharge operating temperature
discharge:-20~+55℃
Warranty
5 years warranty,over 10 years design lifespan
Application
hospital, bank data center, wall-mounted home, enterprise energy storage backup power supply, wind complementary system, office,
military, base station and other uninterrupted energy storage power supply.

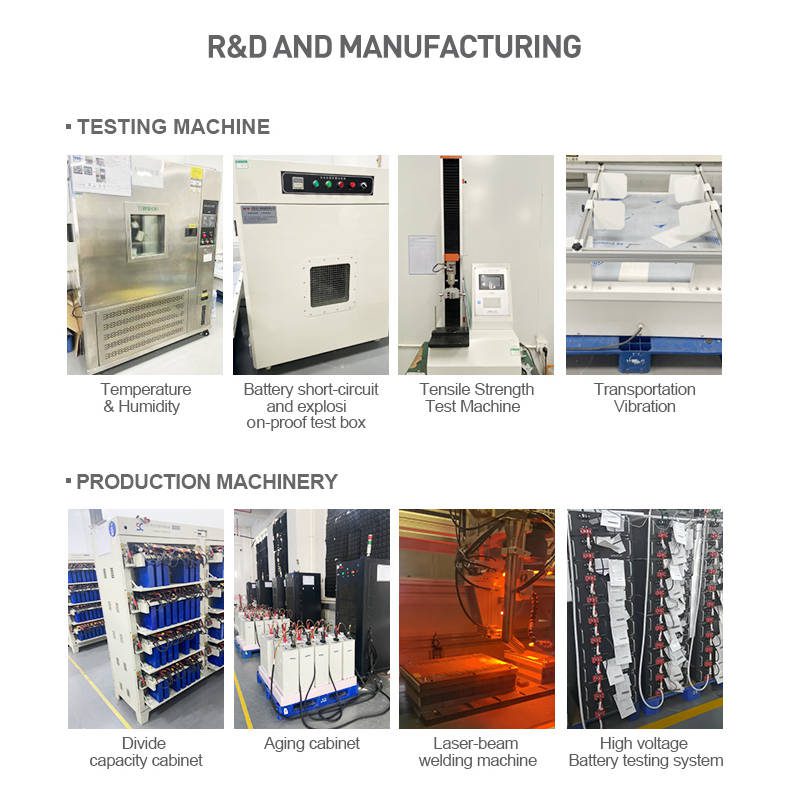

Guangzhou Baitu New Energy Battery Material Technology Co. , Ltd.. has been dedicated to R&D and manufacturing of lithium batteries and inverters more than 10 years, witha strong professional technical R&D team, as well as overseas subsidiariesand warehouses; We have 2 production bases located in Lingnan Town DongguanCity, with over 550 technical workers and an annual output value of over 300 million US dollars. We have 12 fully automatic production lines, with a daily production of over 3000 units and over 100 domestic and foreign ertificates and patents. We have experience inleading global brands OEM/ODM and provide a series of photovoltaicenergy storage system products and solutions.
Baitu lithium batteries use A grade top 10 cells,The production process strictly controls quality, and the products have passed a series of international authoritative certifications such as CE, UL, SGS, UN38.3, ROHS, MSDS, CNAS, etc. The main raw components such as BMS, BCU, BAMS produced are matched with high-end intelligent modules; Improve
production efficiency and save costs through automated production equipment; Baitu is also a customs AEO certified enterprise, supported by the green channel of customs, making our product inspection and delivery faster and more efficient. Every year, we participate in exhibitions at home and abroad dozens of times, and our products are favored by customers, ranking among the top few in the African market,as well as occupying a place in Southeast Asia, Europe and America; Yuyuan has entered the white list of new energy enterprises in China; Guangdong TV conducted on-siteinterviews at the factory, and well-known brands in Guangdong Province are trustworthy partners for you.

Additional Information
Color

White
Capacity

200 Ah, 100ah
System Voltage

51.2 V
