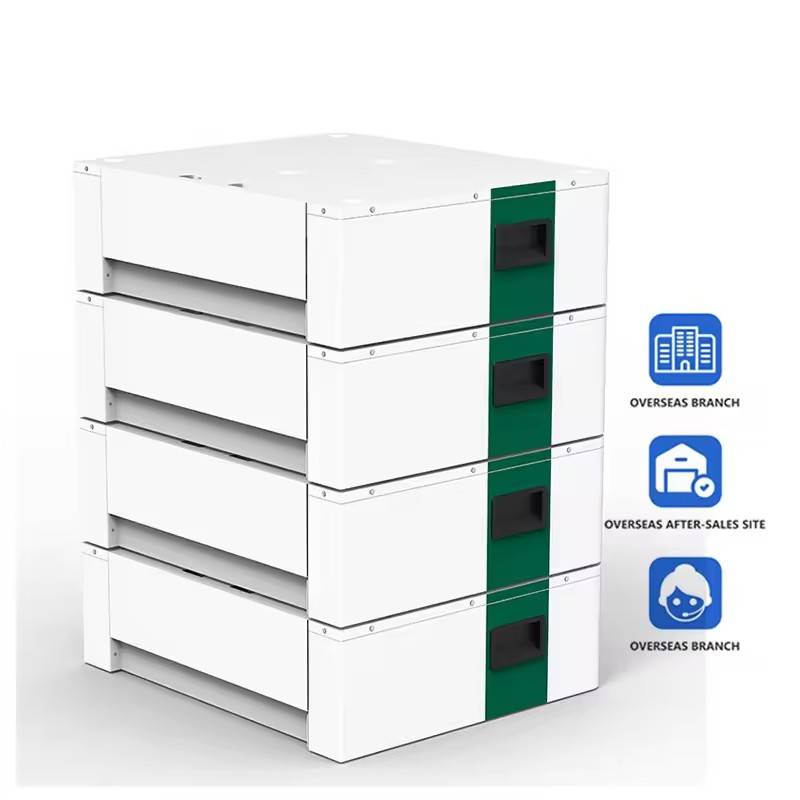

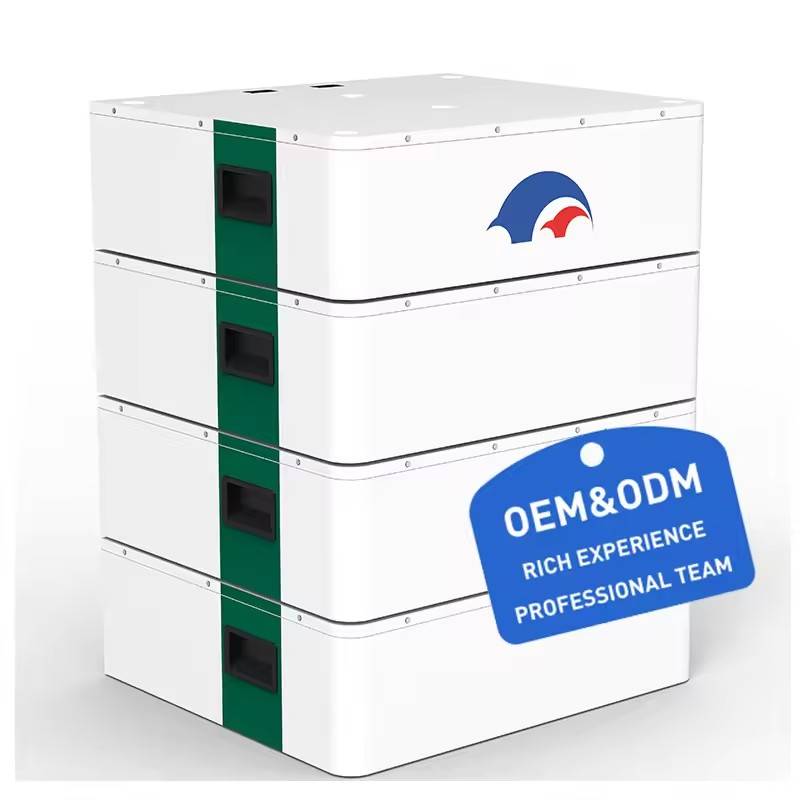

5KWH 10KWH 20KWH 50KWH batteries ion lithium solar home energy batteries 48v 100ah 200ah 10kwh powerwall lifepo4 battery

Key attributes

Other attributes

Battery Type

Lithium Ion

Output Power Range

20-50 kWh

System Type

Stackable

Model Number

YY48400

Brand Name

YUYANG

Place of Origin

Guangdong, China

Dimension (L*W*H)

630*530*760mm

Weight

218KG

Type

All-in-one

Communication Port

CAN, RS232, RS485

Grid connection

Off grid, Hybrid grid

Application

hospital,bank,office,home

Capacity

400ah

type

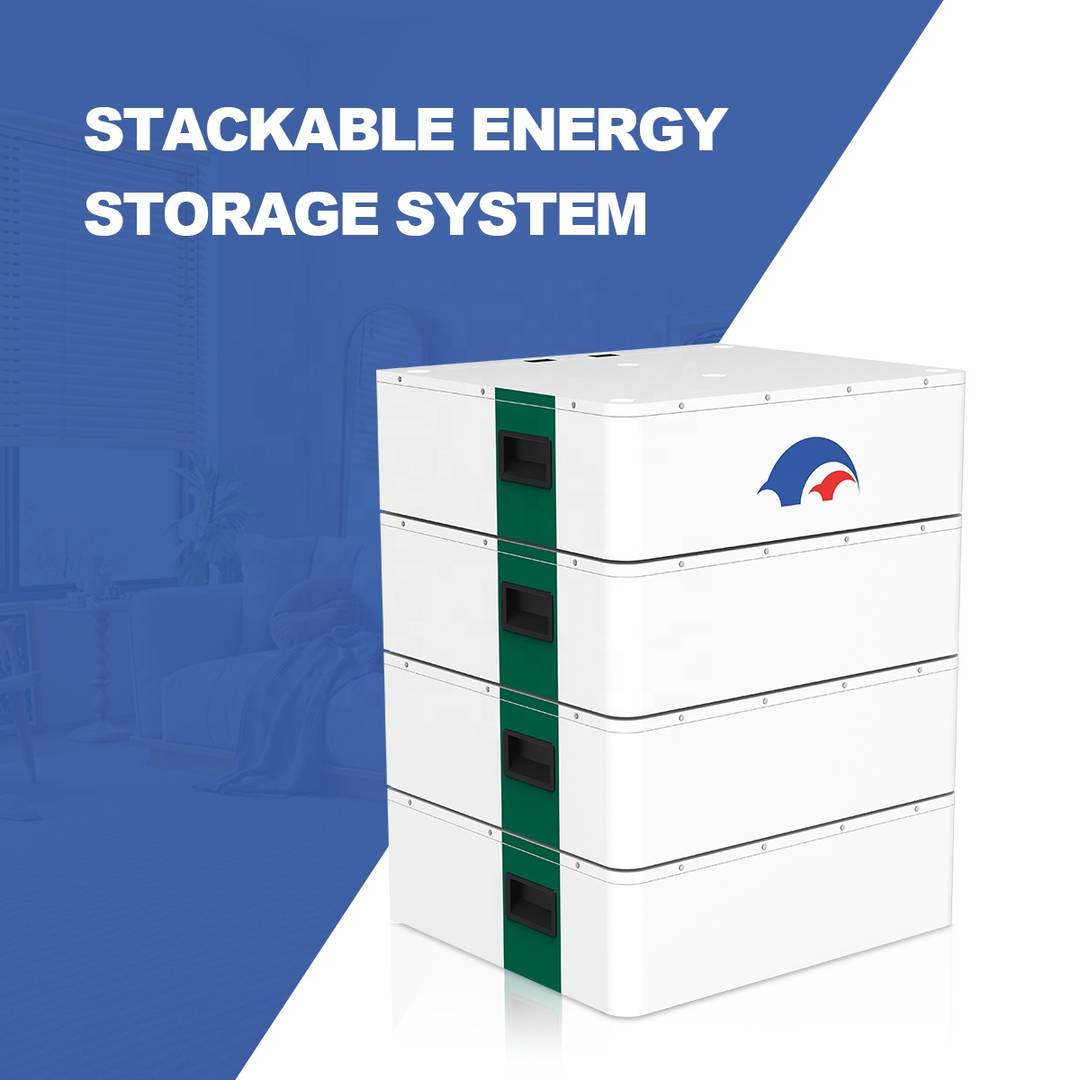

Stackable home energy storage system series

Voltage

51.2v

Product name

YY-48400

Size(mm)

610*530*740

Material

Lithium iron phosphate

Color

optional

Brand

Yuyang

Wattery

5 Years

Packaging and delivery

Selling Units:

Single item

Single package size:

63X55X78 cm

Single gross weight:

250.000 kg

More>>

Description

Product Paramenters

Item	Product Parameters
Model	YY48100	YY48200	YY48300	YY48400	YY48500
Batteries materials	Lithium iron phosphate
Series parallel mode (S series, P parallel)	16S1P	16S1P	16S1P	16S1P	16S1P
Nominal voltage	51.2V	51.2V	51.2V	51.2V	51.2V
Nominal capacity	100Ah	200Ah	300Ah	400Ah	500Ah

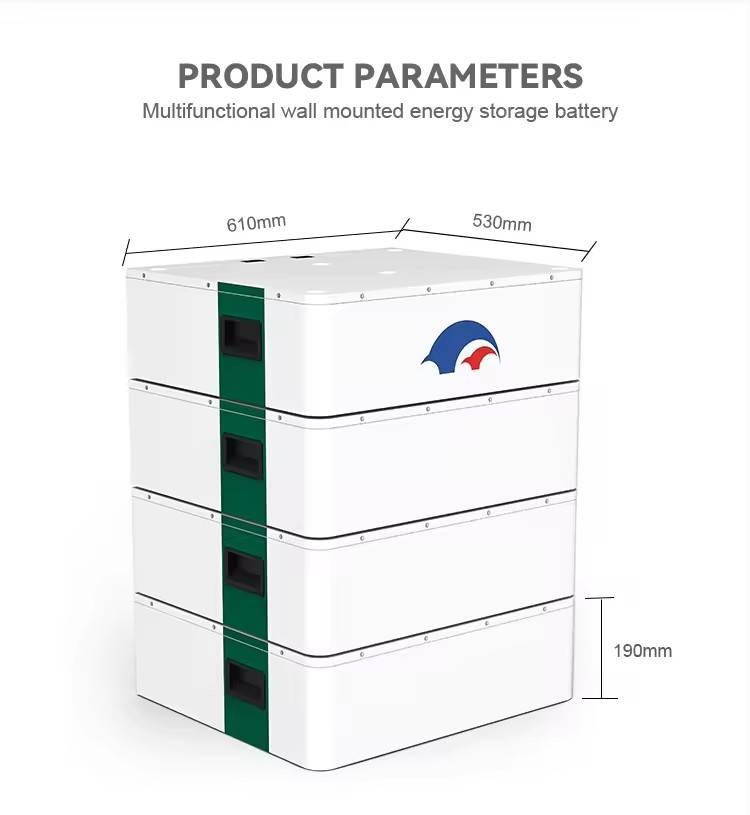

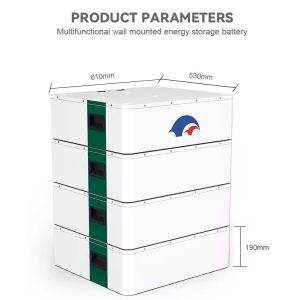

Size（mm）	610530190	610530380	610530570	610530760	610530950
Weight	61kg	108.8kg	163.2kg	217.6kg	272kg
Color	Optional

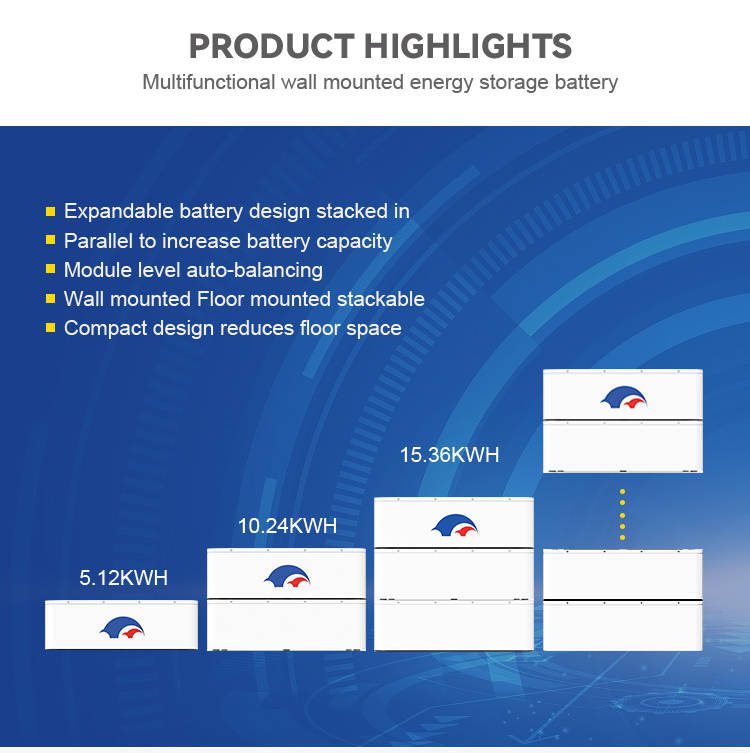

Parallel support	Parallel terminals are supported
Output port mode	terminal
Charging way	CC/CP/VP
Charging current	0.2C(standard）
Maximum charging current	Max1C @25℃
Charge cut-off voltage	58.4V
Discharge way	CC/CP/VP
Discharge current	1C
Maximum discharge current	Max1C @25℃
Discharge cut-off voltage	44.8V
According to	LCD

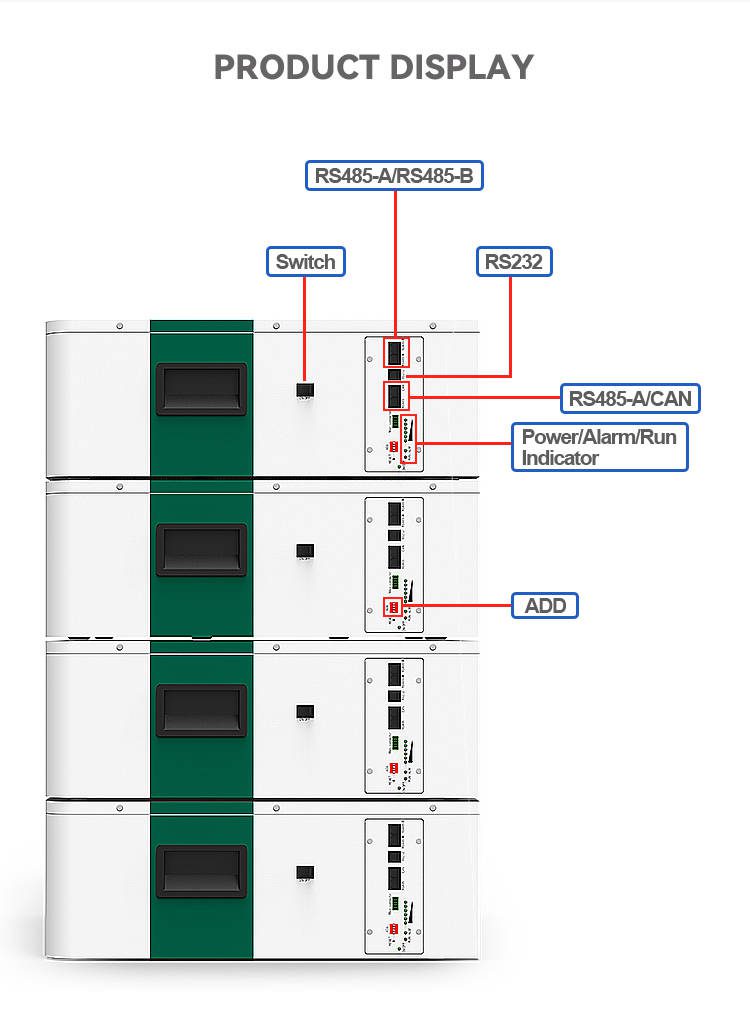

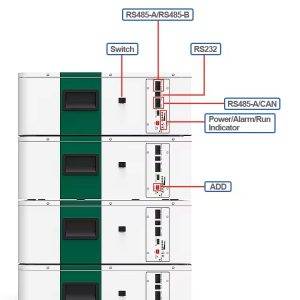

Communication interface	RS485/RS232/CAN
Charging operating temperature	charging0~+50℃
Discharge operating temperature	discharge-20~+55℃
Warranty	5 years
Inverter	8-10KW
Scope of application	hospital, bank data center, wall-mounted home, enterprise energy storage backup power supply, wind complementary system, office, military, base station and other uninterrupted energy storage power supply.
