800ah 50kw 40kwh home lithium battery pack 800ah 51.2V solar system 48V lifepo4 lithium ion battery for solar panel 51.2V

Industry-specific attributes

Anode Material

LFP

Application

Toys, Power Tools, Home Appliances, Consumer Electronics, BOATS, Golf Carts, SUBMARINES, Electric Bicycles/Scooters, electric vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies, Electric Forklifts

Other attributes

Brand Name

Baitu

Model Number

YY48100HR

Place of Origin

Guangdong, China

Weight

79kg

The charging ratio

0.2C

The discharge rate

0.5C

Battery type

Lifepo4/lithium Battery

Voltage

51.2V/48V

OEM/ODM

Accepatable

Features

Environmental Safety Long Life

Battery cell

LiFePo4

Cycle life

6000 Times

Nominal Capacity

100 AH / Customized

Name

Battery Energy Storage

Warranty

5years

Type

Rack mount

Packaging and delivery

Packaging Details

Carton+ Pallet

Selling Units:

Single item

Single package size:

60X60X33 cm

Single gross weight:

86.000 kg

Supply Ability

100 Piece/Pieces per Day

More>>

Description

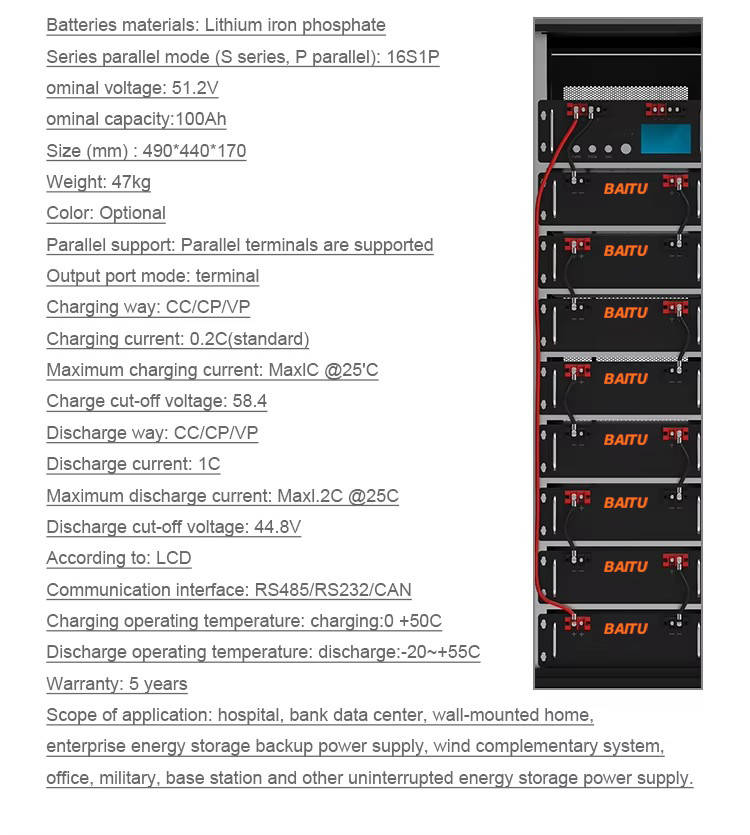

Item	Product Parameters

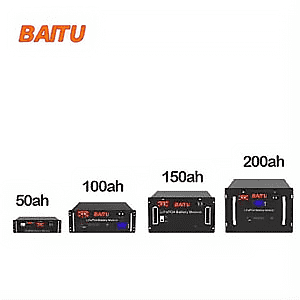

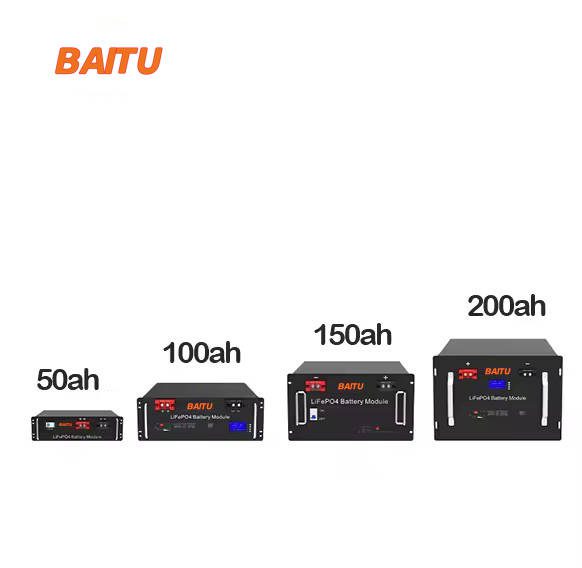

Model	YY4850HR	YY4880HR	YY48100HR	YY48120HR	YY48150HR
Rate voltage(Vdc)	51.2	51.2	51.2	51.2	51.2
Rate capacity(AH)	50	80	100	120	150
Energy storage(KWH)	2.56	4.096	5.12	6.144	7.68
Cycle life	≥6000 cycles to 85% DOD
Months self discharge	≤2%
Efficiency of charge	100% at 0.2C
Efficiency of discharge	96-99% at 1C
Charge voltage	58.4
Charge mode	0.2C to 58.4V, then 58.4V,charge current to 0.02C (CC/CV)
Charge current(A)	10	16	20	24	30
Max. Charge current(A)	50	80	100	120	120
Charge cut-off voltage(VDC)	58.4
Contiunous current(A)	50	80	100	120	120
Discharge cut-off voltage(VDC)	44.8
Charge temperature	0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity
Discharge temperature	-20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity
Storage temperature	0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity
IPclass	IP63
Material system	LiFePO4
Case material	Metal

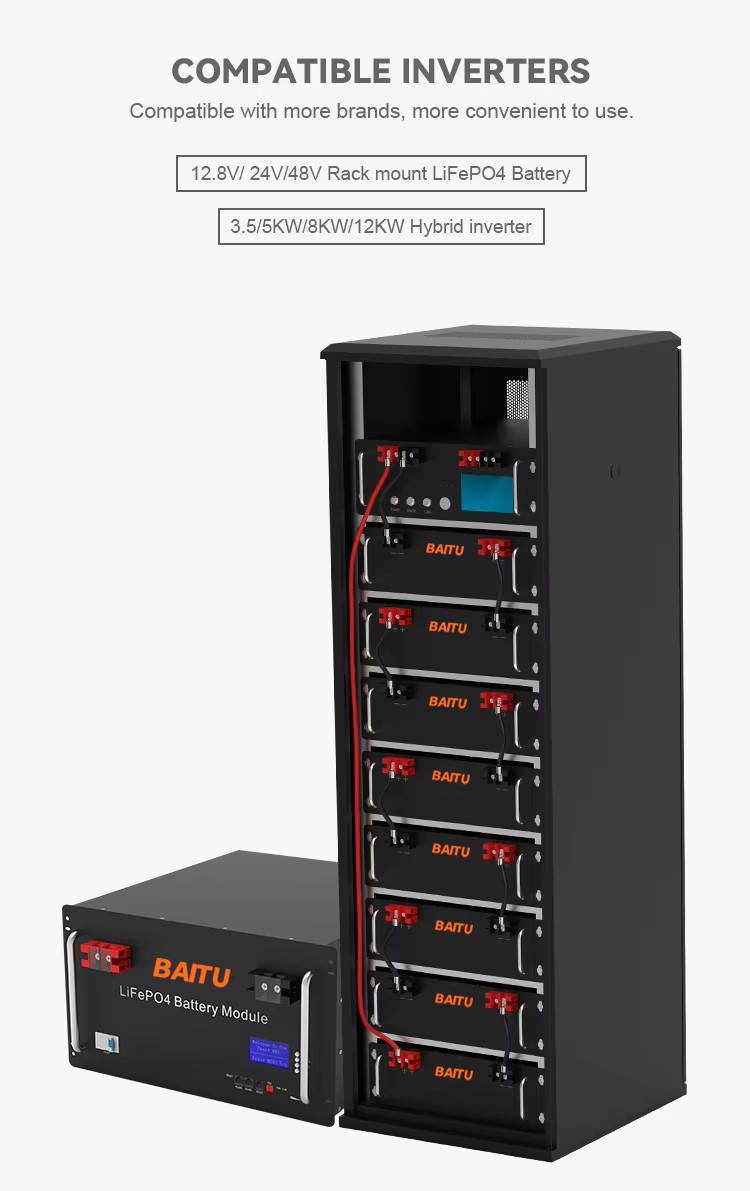

Case Type	Rack Mount

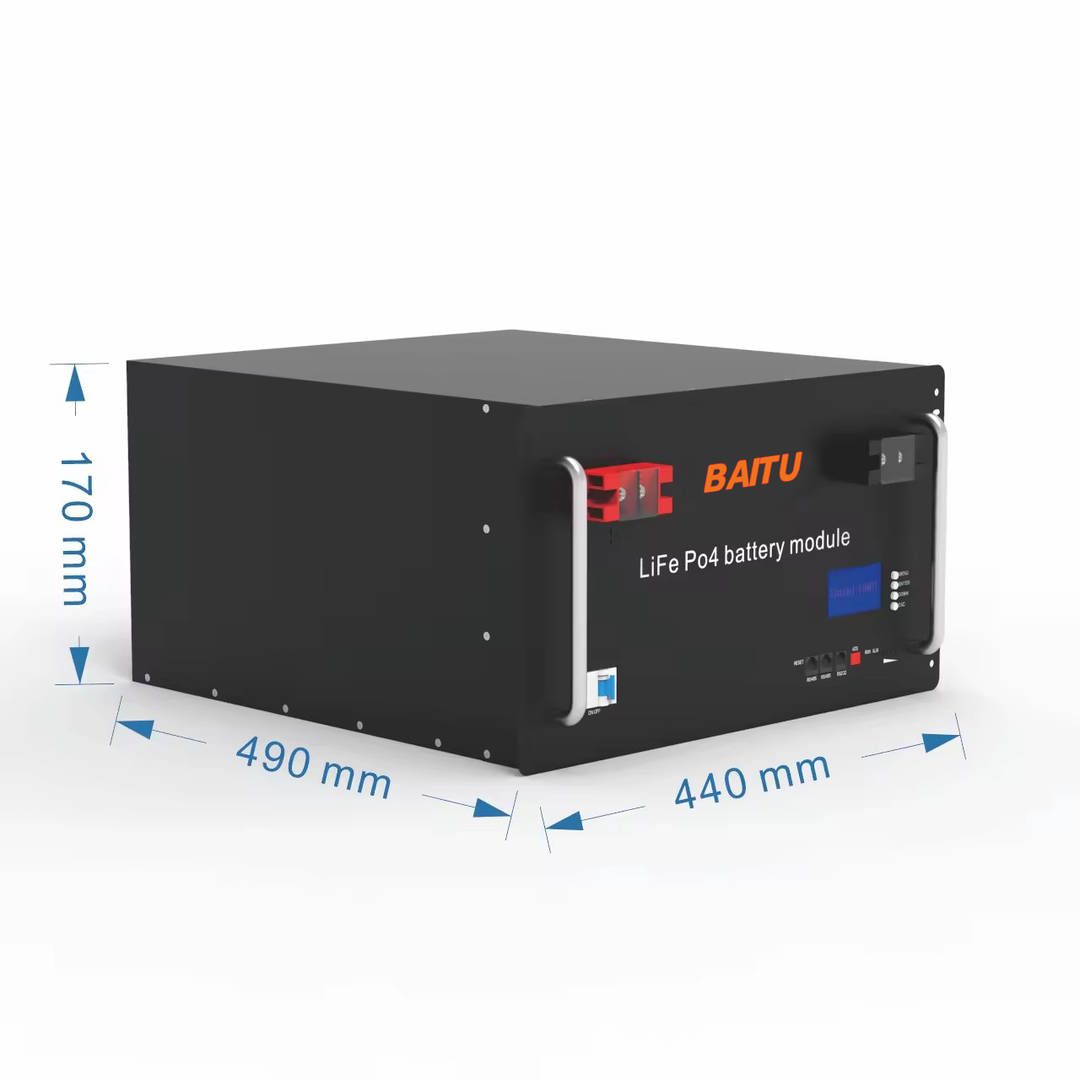

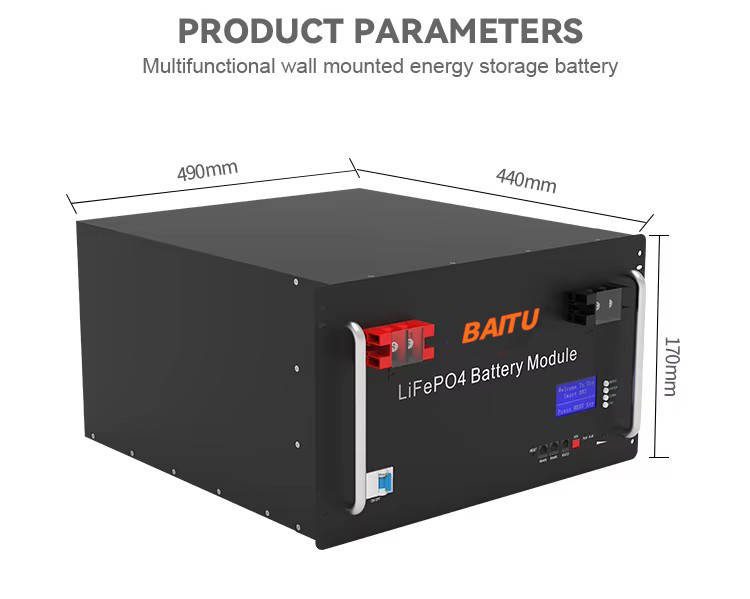

Pack Dimensions LWH(mm)	451450177	465482191	490482191	490482191	490484250
Package Dimension LWH(mm)	545525255	560515265	585515345	585515345	575515325
Net Weight(kg)	24.6	33.6	52.8	54.6	64.5
Gross Weight(kg)	26.2	36.8	55.6	56.2	67

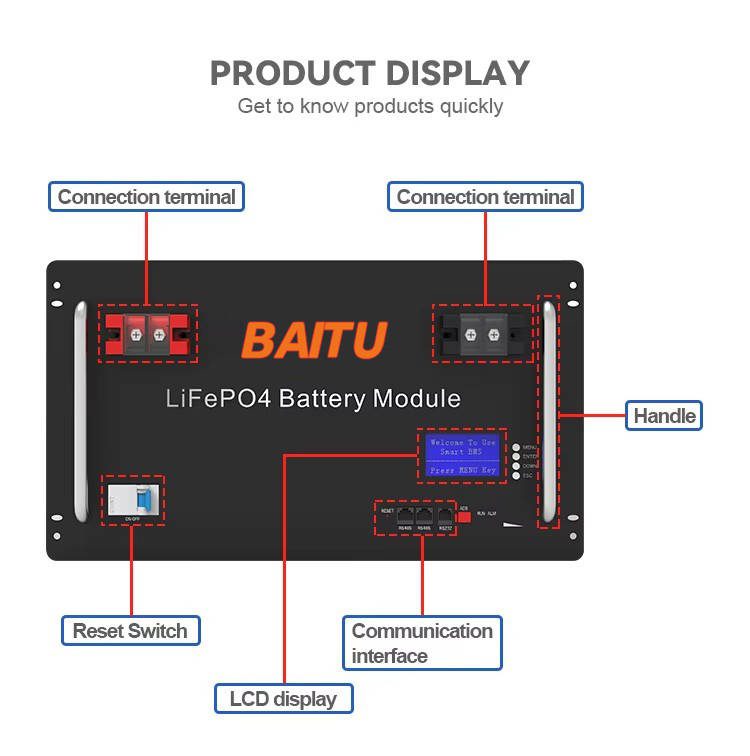

Terminal	M8
Protocol(Optional)	CANBus/RS485/RS232
SOC (Optional)	LED/LCD
The quality assurance period	60 months
Scope of application	hospital, bank data center, wall-mounted home, enterprise energy storage backup power supply, wind complementary system, office, military, base station and other uninterrupted energy storage power supply.
