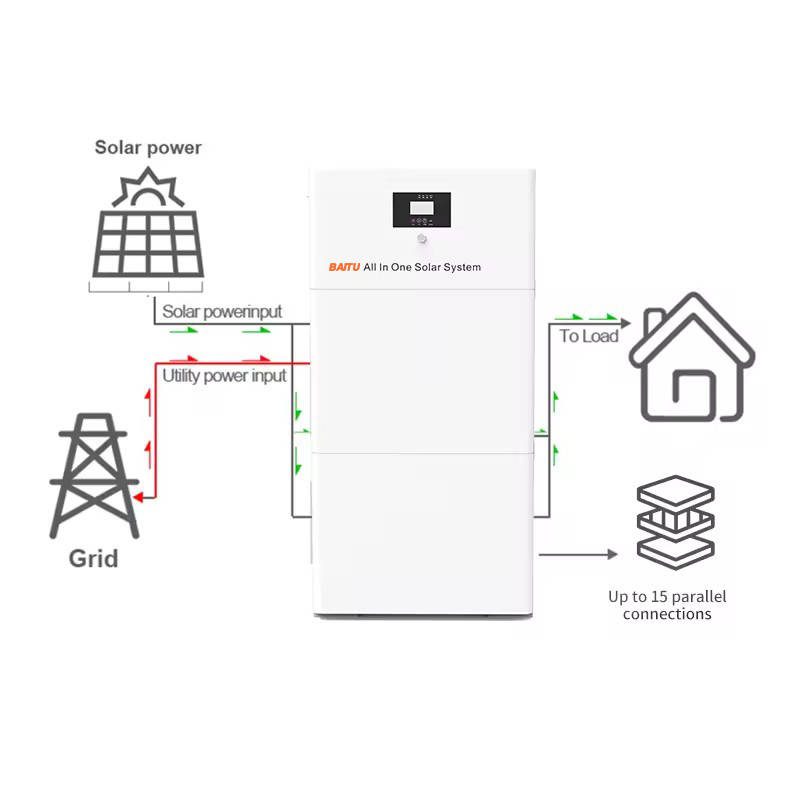

All in one inverter and lithium battery 150ah 200ah 400ah lifepo4 12v 100ah battery storage lithium battery pack for solar 48v

Industry-specific attributes

Storage Type

discharge-20~+55℃

Anode Material

LFP

Application

Home Appliances, BOATS, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies

Other attributes

Brand Name

BAITU

Model Number

YY48200LS

Electric Energy

10 Wh

Place of Origin

Guangdong, China

Weight

48KG

The charging ratio

1C

The discharge rate

1C

Product name

All in one solar energy system

Batteries materials

Lithium iron phosphate

Series parallel model

16S1P

Nominal voltage

51.2V/48V

Nominal capacity

100Ah/150ah/200ah/300ah

Size(mm)

588*195*430

Cycle life

6000+

Features

All in one(Batter +Inverter)

Warranty

5 Years

Apllication

hospital, bank data center, office

Packaging and delivery

Selling Units:

Single item

Single package size:

60X20X44 cm

Single gross weight:
48.000 kg
More>>
Clear
Add to quote
Description

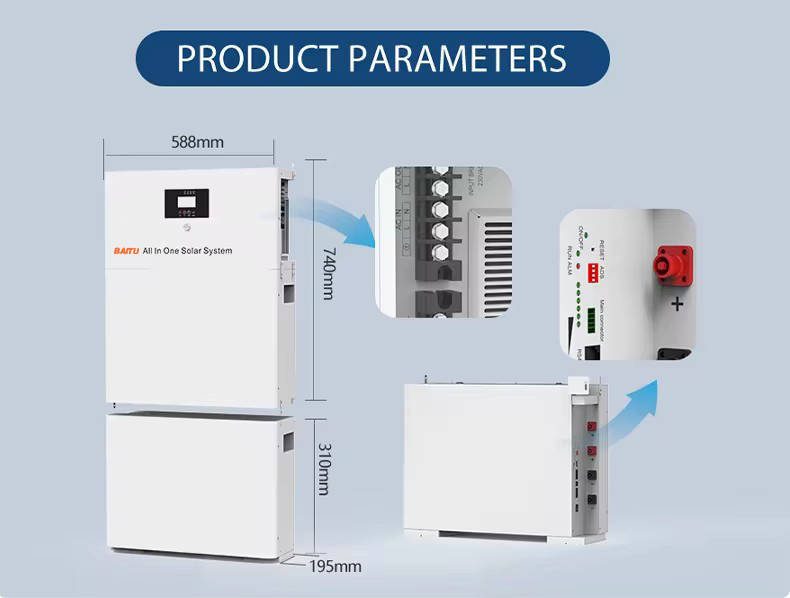

Overview

Item
Product Parameter
Model
YY48100LS
YY48200LS
YY48300LS
Batteries materials
Lithium iron phosphate
Series parallel mode (S series, P parallel)
16S1P
16S1P
16S1P
Nominal voltage
51.2V
51.2V
51.2V
Nominal capacity
100Ah
200Ah
300Ah
Size（mm）
588*195*430/module
588*195*430/module
588*195*430/module
Weight
48KG
96KG
144KG
Color
Optional

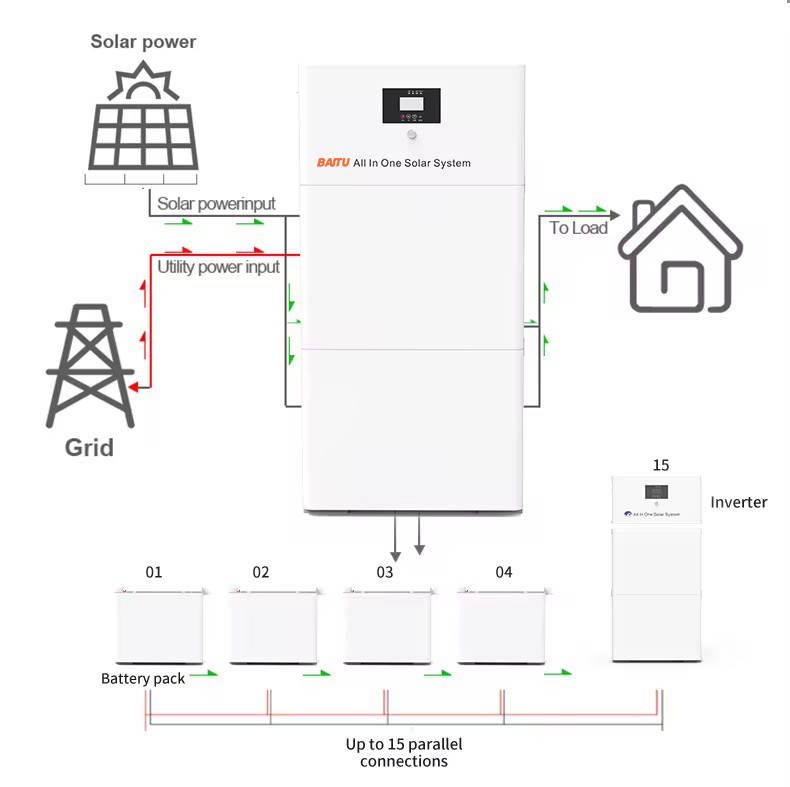

Parallel support
Parallel terminals are supported
Output port mode
terminal
Charging way
CC/CP/VP
Charging current0.2C(standard）
0.2C(standard）
Maximum charging current
Max1C @25℃
Charge cut-off voltage
58.4V
Discharge way
CC/CP/VP
Discharge current
1C
Maximum discharge current
Max1C @25℃
Discharge cut-off voltage
44.8V

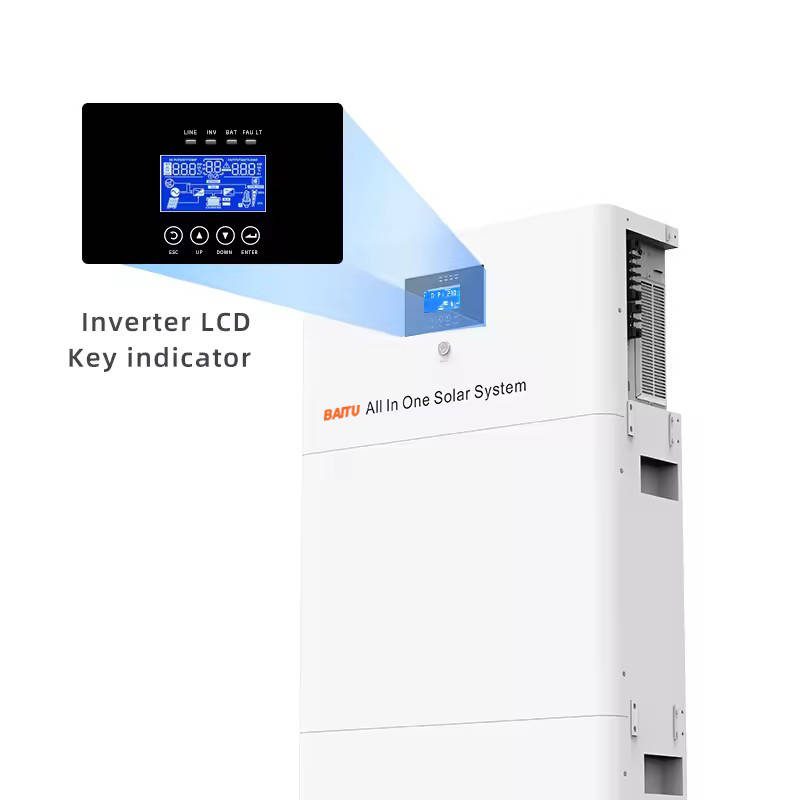

According to
LCD
Communication interface
RS485/RS232/CAN
Charging operating temperature
charging0~+50℃
Discharge operating temperature
discharge-20~+55℃
Warranty
5 years

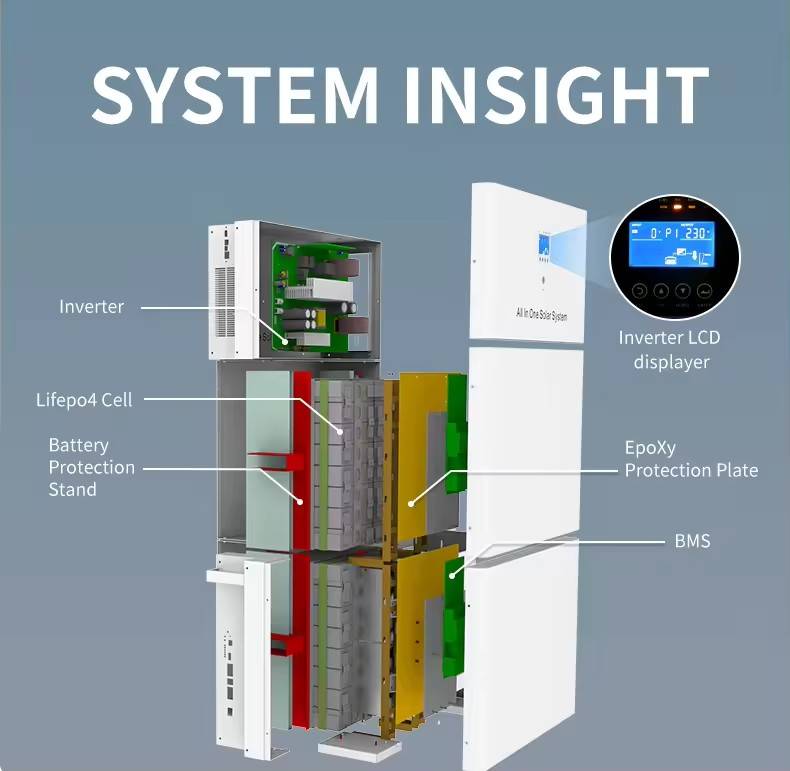

Inverter
3.5/5.5KW
Scope of application
hospital, bank data center, wall-mounted home, enterprise energy storage backup power supply, wind complementary system, office,
military, base station and other uninterrupted energy storage power supply.
Additional Information
Nominal Voltage

48V, 51.2V
Nominal Capacity

100Ah, 200Ah, 300Ah
Battery Type

pack
