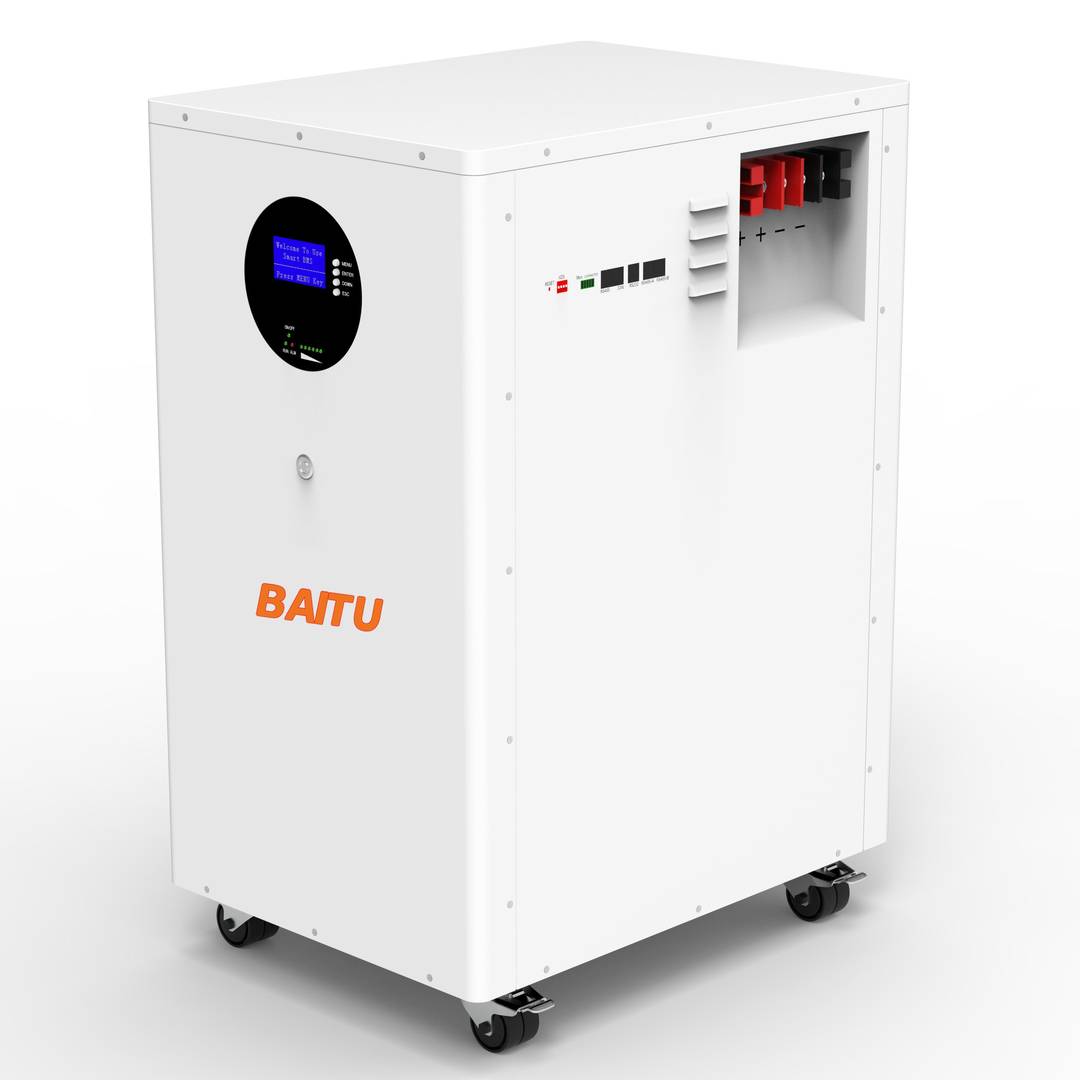

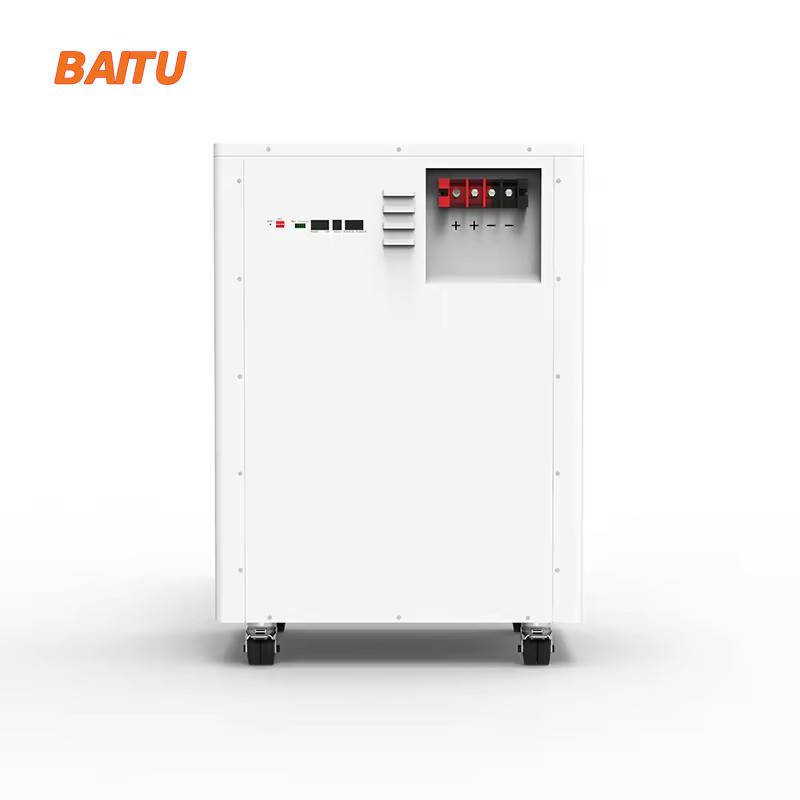

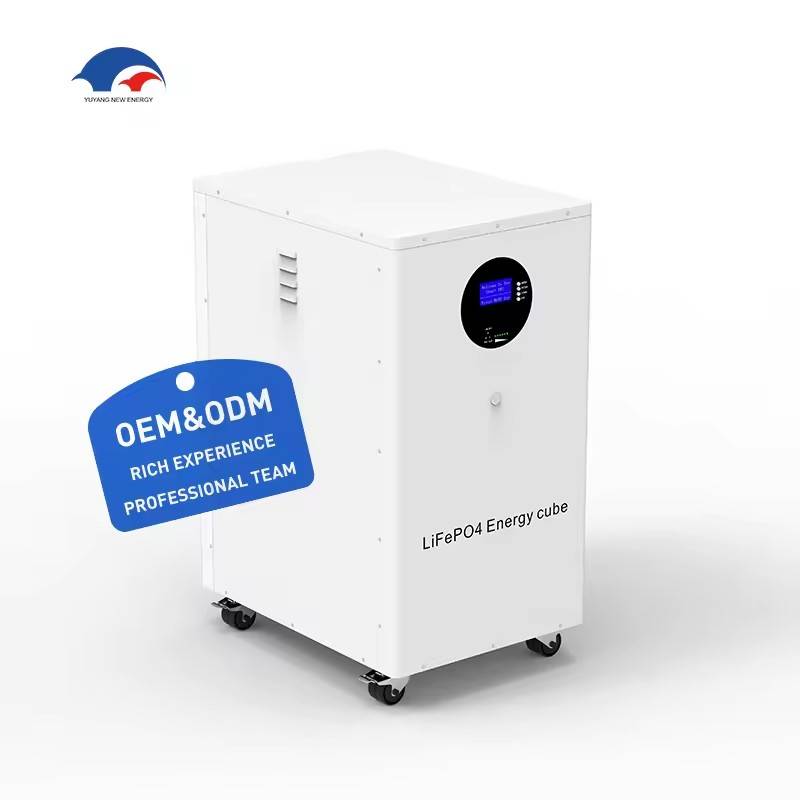

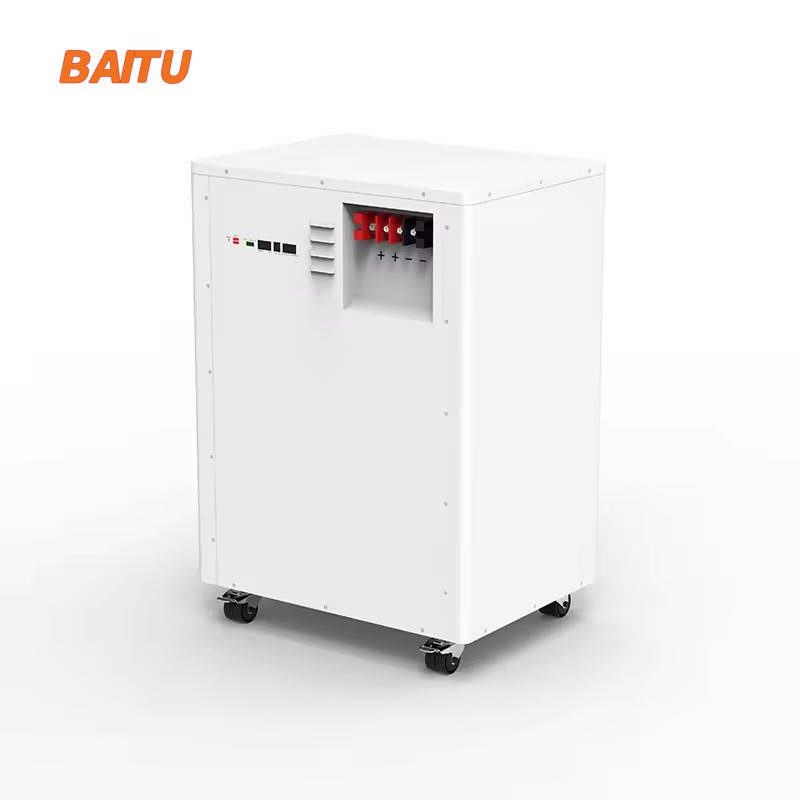

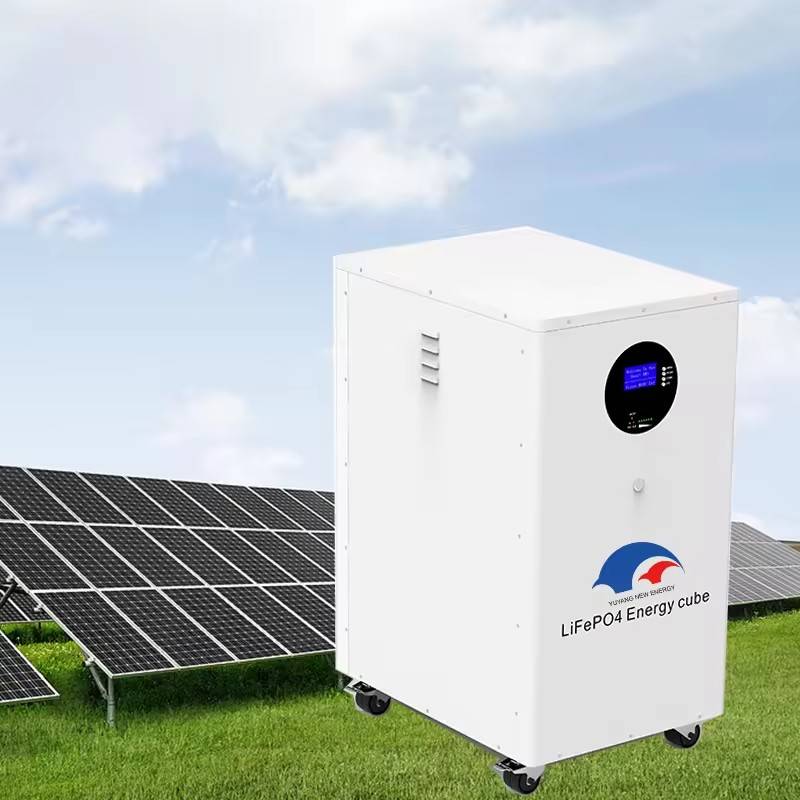

48v 200a Power Storage Solar System Price 10kw 15kwh Storage Energy Lifepo4 Lithium Ion batteries For Home Battery

Key attributes

Other attributes

Battery Type

Lithium Ion

Output Power Range

10~20 kWh

System Type

floor stand

Model Number

YY48200

Brand Name

Baitu

Place of Origin

Guangdong, China

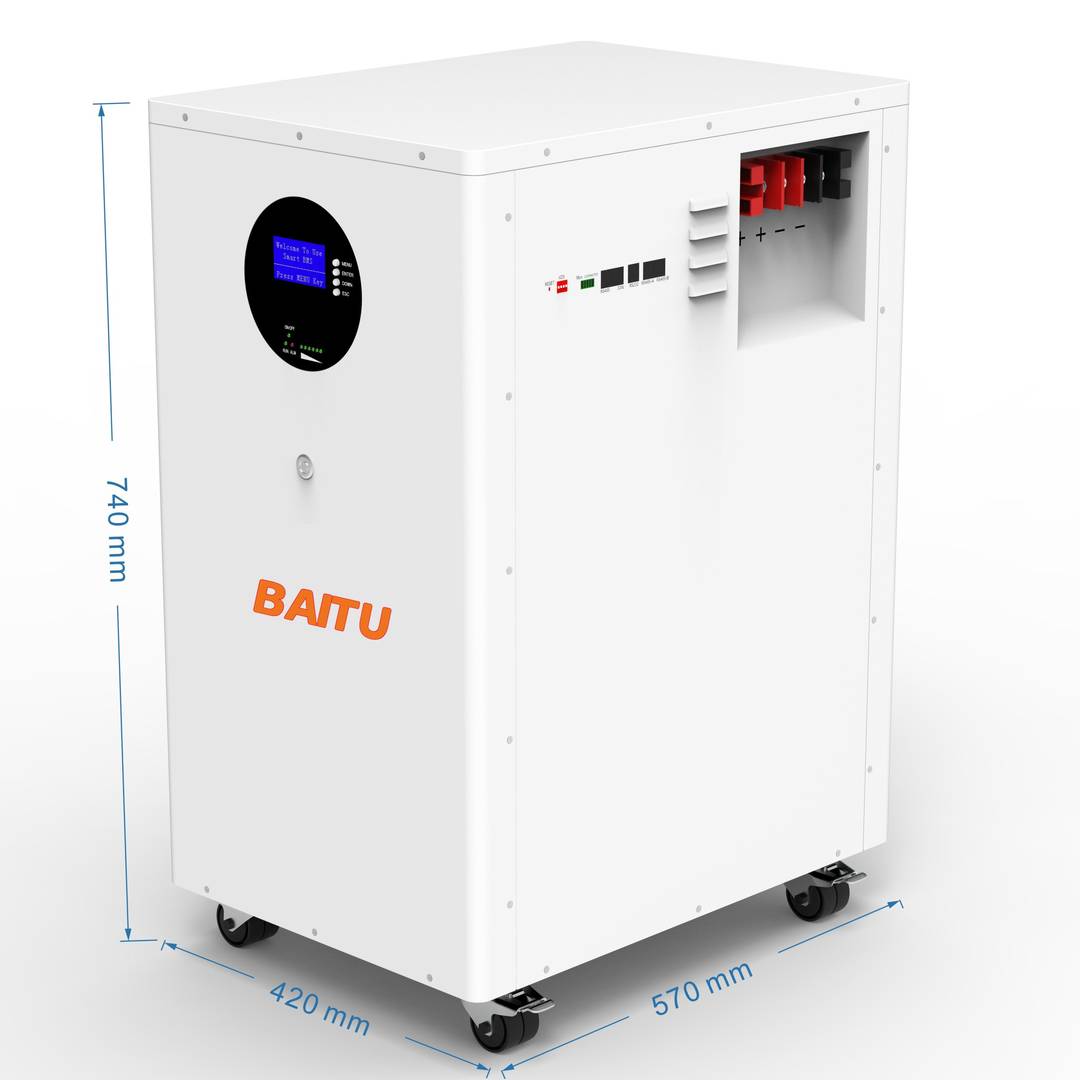

Dimension (L*W*H)

570*420*740MM

Weight

157

Type

All-in-one

Communication Port

CAN, RS232, RS485

Protection Class

IP54

Grid connection

Off grid, Hybrid grid

Parallel support

Parallel terminals are supported

Material

Lithium iron phosphate

Voltage

51.2V(48V)

Capacity

200ah/300ah

Series parallel mode

16S2P

Charging current

0.2C(standard)

Maximum charging current

Max0.5C @25℃

Discharge way

CC/CP/VP

Type

floor stand

Warranty

5 yeas

Packaging and delivery

Selling Units:

Single item

Single package size:

49X64X110 cm

Single gross weight:

160.000 kg

More>>

Description

Product Paramenters

Item	Product Parameter
Model	YY48200	YY48300
Batteries materials	Lithium iron phosphate
Series parallel mode (S series, P parallel)	16S2P	16S2P
Rate voltage	51.2V	51.2V
Rate capacity	200Ah	300Ah
Size（mm）	570420740	570420740
Weight	137kg	152kg
Color	Optional
Parallel support	Parallel terminals are supported
Output port mode	terminal
Charging way	CC/CV
Charging current	0.2C(standard）
Maximum charging current	Max0.5C @25℃
Charge cut-off voltage	58.4V
Discharge way	CC/CP/VP
Discharge current	1C
Maximum discharge current	Max1C @25℃
Discharge cut-off voltage	44.8V
Communication interface	RS485/RS232/CAN
Charging operating temperature	charging:0~+50℃
Discharge operating temperature	discharge:-20~+55℃
type	floor stand
The quality assurance period	60 months
