new solar energy storage lithium ion 36v 25.6v 200ah 300ah 50ah 9ah 12v 100ah 3.2v 24v lifepo4 battery

Industry-specific attributes

Anode Material

LFP

Application

Home Appliances, BOATS, Golf Carts, SUBMARINES, Electric Bicycles/Scooters, electric vehicles, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies, Electric Forklifts

Other attributes

Brand Name

BAITU

Model Number

YY12100P

Electric Energy

1.28 Wh

Battery Size

Lithium ion battery(Lifepo4)

Place of Origin

Guangdong, China

Weight

412*326*137mm

The charging ratio

100% at .02C

The discharge rate

96-99% at 1C

Product name

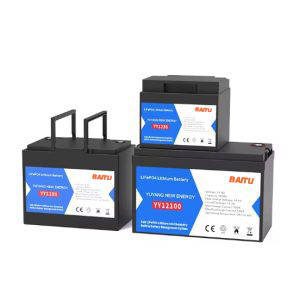

Lifepo4 Plastic case battery

Capacity

7ah/9ah/12ah/15ah/50ah/80ah/100ah/150ah/200ah

Voltage

12.8V/25.6V/36V/72V

Cycle life

4000 cycles

OEM/ODM

Color/ Logo

Protocol(Optional)

Bluetooth/CANBUS/RS485/RS232

IP class

IP60

Case meterial

Plastic

Teminal

Lifepo4 (lithium ion battery)

SOC(Optional)

LED/LCD

Packaging and delivery

Selling Units:

Single item

Single package size:

46X45X23 cm

Single gross weight:
23.000 kg
More>>
Clear
Add to quote
Description
Model
YY1280P
YY12100P
YY12120P
YY12150P
YY12200P
Rate voltage(Vdc)
12.8
12.8
12.8
12.8
12.8
Rate capacity(AH)
80
100
120
150
200
Energy storage(KWH)
1.024
1.28
1.536
1.92
2.56
Cycle life
≥4000 cycles @ 85% DOD
Months self discharge
≤2%
Efficiency of charge
100% at 0.2C
Efficiency of discharge
96-99% at 1C
Charge voltage
14.6±0.1V
Charge mode
0.2C to 14.6V, then 14.6V,charge current to 0.02C (CC/CV)
Charge current(A)
16
20
24
30
40
Max. Charge current(A)
80
100
100
100
200
Charge cut-off voltage(VDC)
14.6
Contiunous current(A)
80
100
100
100
200
Discharge cut-off voltage(VDC)
11.2
Charge temperature
0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity
Discharge temperature
-20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity
Storage temperature
0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity
IP class
IP60
Material system
LiFePO4
Case material
Plastic

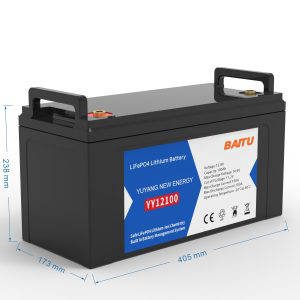

Pack Dimensions L*W*H(mm)
256*135*210
330*172*215
406*173*218
483*170*240
522*240*218
Package Dimension L*W*H(mm)
460*445*230
460*445*230
460*445*250
550*470*250
575*560*250
Net Weight(kg)
9
11
12.3
14.9
20.8
Gross Weight(kg)
10.6
11.8
13.1
16.5
22.8
Terminal
M8
Protocol(Optional)
CANBus/RS485/RS232
SOC (Optional)
LED/LCD
The quality assurance period
60 months

Additional Information
Nominal Voltage

12V, 12.8V, 24V, 36V, 72V, 25.6V
Nominal Capacity

50Ah, 60Ah, 100Ah, 150Ah, 200Ah
Battery Type

Prismatic
