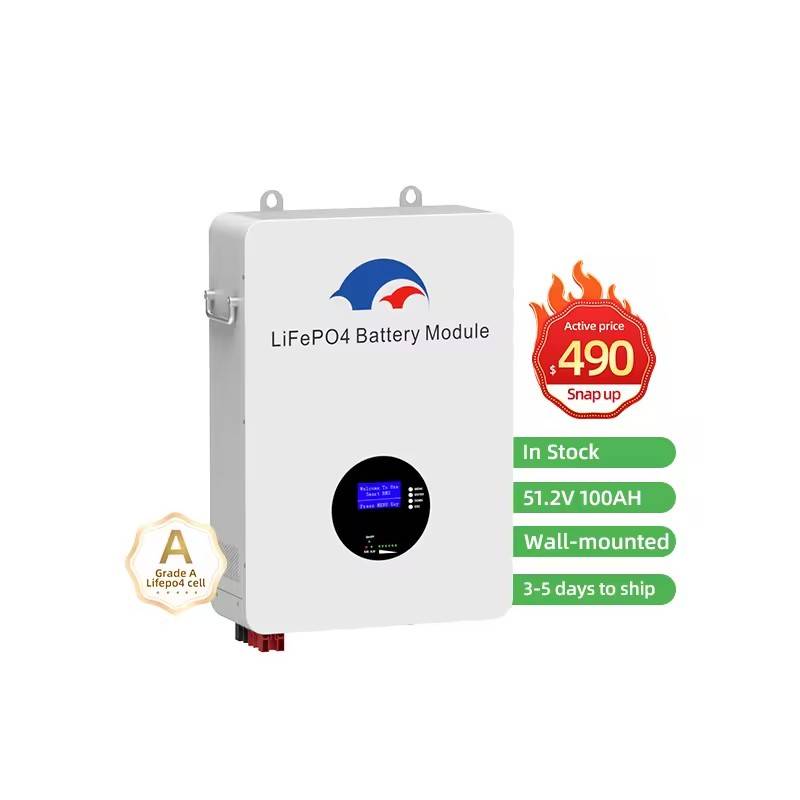

packs 400ah 320ah battery yuyang invert 12kw baterias power invater back 10kwh blade lithium battery catl solar system

Key attributes

Industry-specific attributes

Storage Type

other

Anode Material

LFP

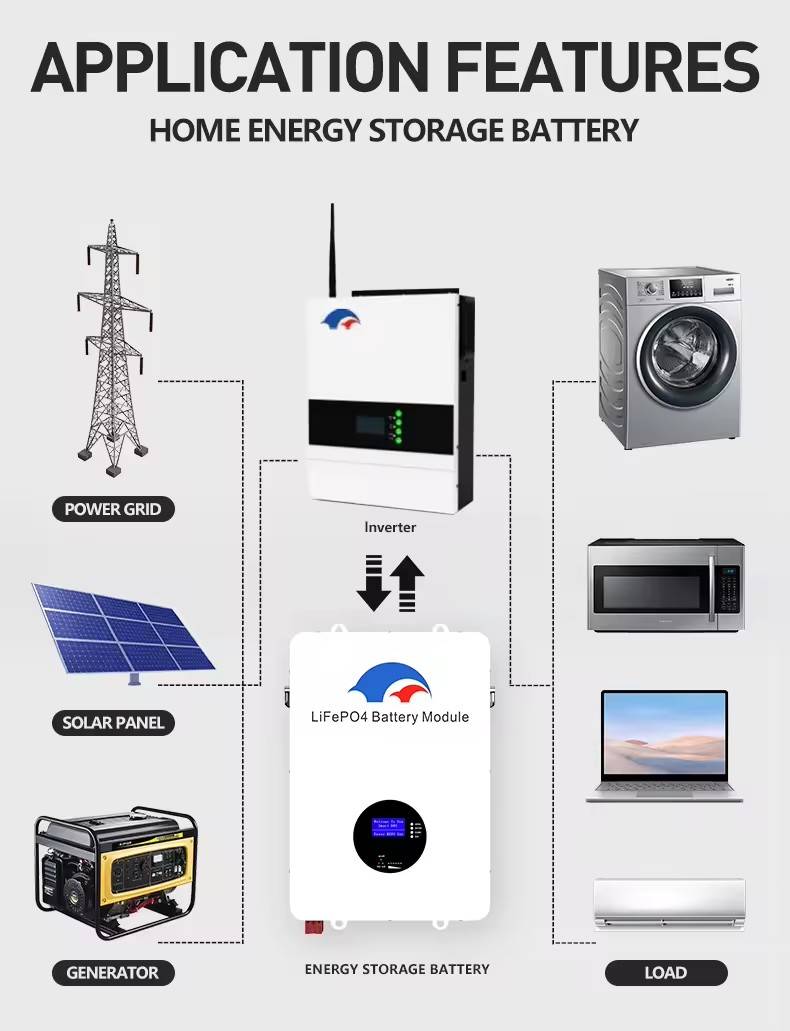

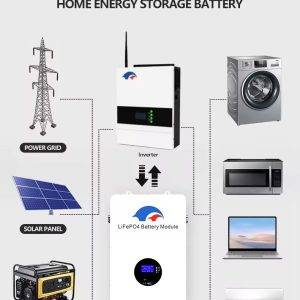

Application

Consumer Electronics, BOATS, Golf Carts, SUBMARINES, Electric Bicycles/Scooters, electric vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies, Electric Forklifts

Other attributes

Brand Name

Yuyang

Model Number

YY48100HW

Electric Energy

5120 Wh

Battery Size

51.2V 100Ah

Place of Origin

Guangdong, China

Weight

48 kg

The charging ratio

0.2C

The discharge rate

0.5C

Battery type

Lifepo4/lithium Battery

Voltage

51.2 V

OEM/ODM

Accepatable

Features

Environmental Safety Long Life

Battery cell

LiFePo4

Nominal Capacity

100AH/Customized

Name

Energy Storage Battery

Cycle life

6000 Times

Warranty

5years

Application

Electric Folklifts

Packaging and delivery

Selling Units:

Single item

Single package size:

63X45X20 cm

Single gross weight:
50.000 kg
More>>
Clear
Add to quote
Description
Item
Product Parameter
Model
YY4850HW
YY4880HW
YY48100HW
YY48150HW
YY48200HW
Rate voltage(Vdc)
51.2
51.2
51.2
51.2
51.2
Rate capacity(AH)
50
80
100
150
200
Energy storage(KWH)
2.56
4.096
5.12
7.68
10.24
Cycle life
≥6000 cycles to 85% DOD
Months self discharge
≤2%
Efficiency of charge
100% at 0.2C
Efficiency of discharge
96-99% at 1C
Charge voltage
58.4
Charge mode
0.2C to 58.4V, then 58.4V,charge current to 0.02C (CC/CV)
Charge current(A)
10
16
20
30
40
Max. Charge current(A)
50
80
100
120
200
Charge cut-off voltage(VDC)
58.4
Contiunous current(A)
50
80
100
150
200
Discharge cut-off voltage(VDC)
44.8
Charge temperature
0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity
Discharge temperature
-20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity
Storage temperature
0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity
IPclass
IP43
Material system
LiFePO4
Case materia
Metal
Case Type

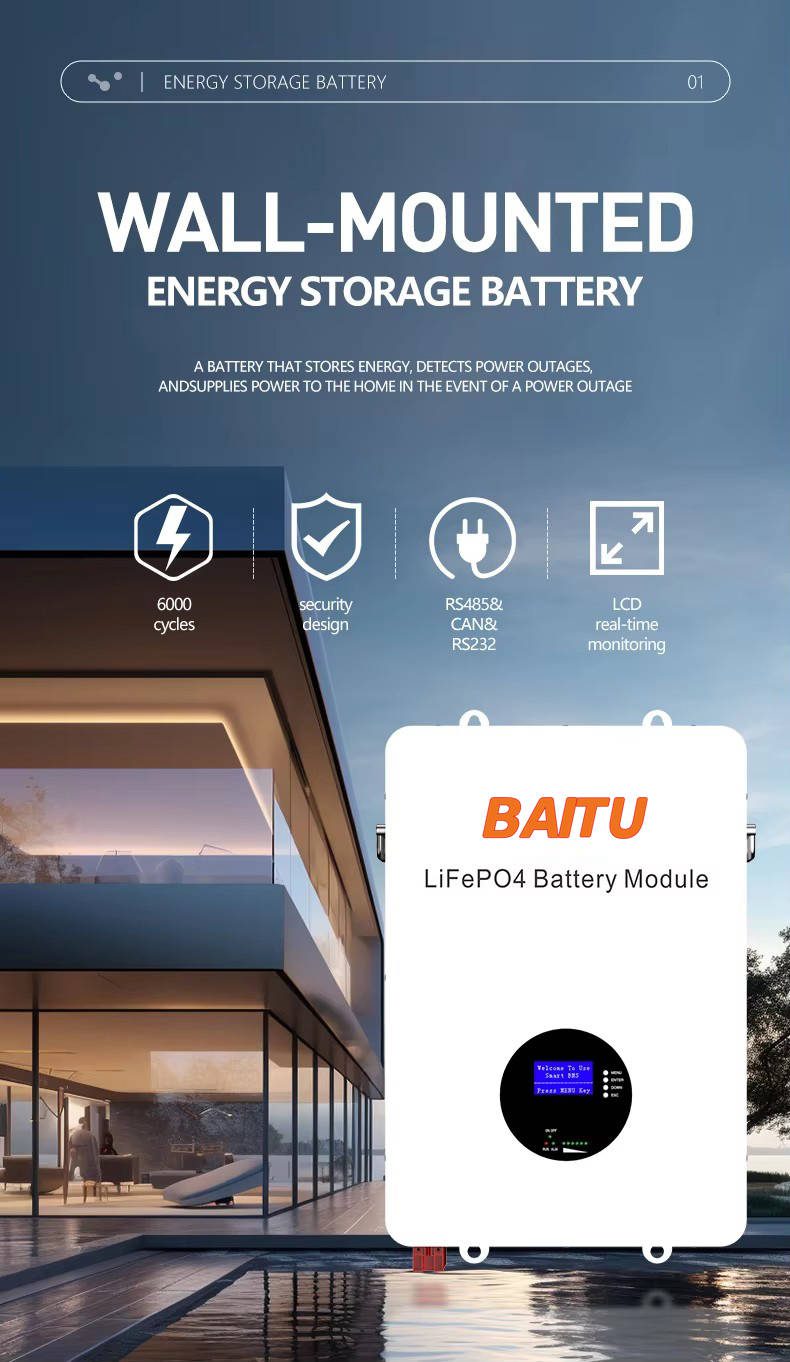

Rack/Wall Mount
Pack Dimensions L*W*H(mm)
455*390*150
570*410*155
570*410*155
860*485*190
860*485*190
Package Dimension L*W*H(mm)
610*485*250
610*485*250
610*485*250
950*575*250
950*575*250
Net Weight(kg)
28.3
40.4
45
67.4
83.8
Gross Weight(kg)
31.2
42.7
48.2
70.1
86.4
Terminal
M8
Protocol(Optional)
CANBus/RS485/RS232
SOC (Optional)
LED/LCD
The quality assurance period
60 months

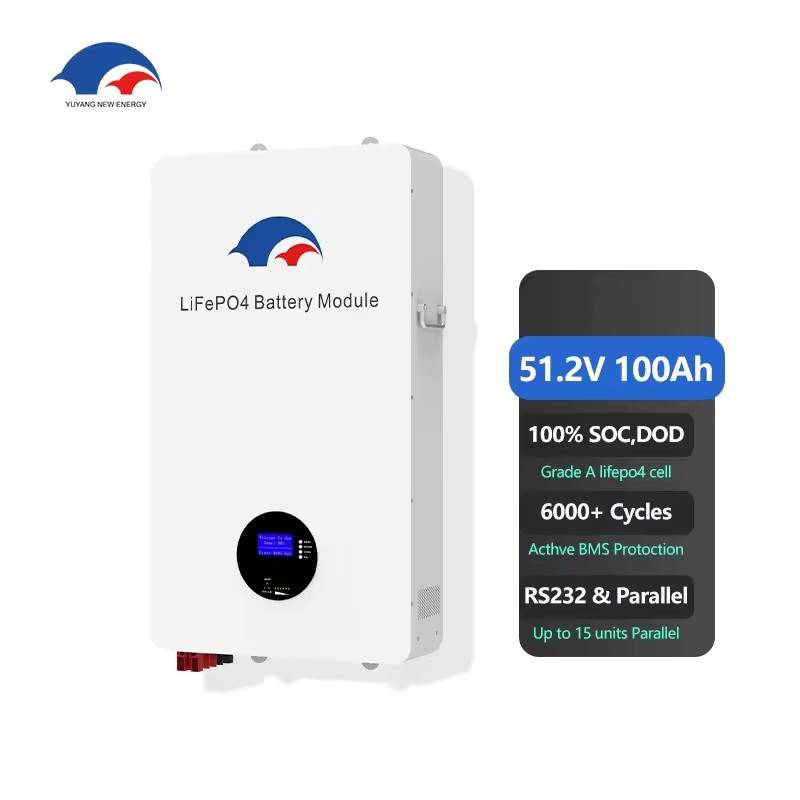

Additional Information
Nominal Voltage

51.2V
Nominal Capacity

100Ah
Battery Type

Prismatic
